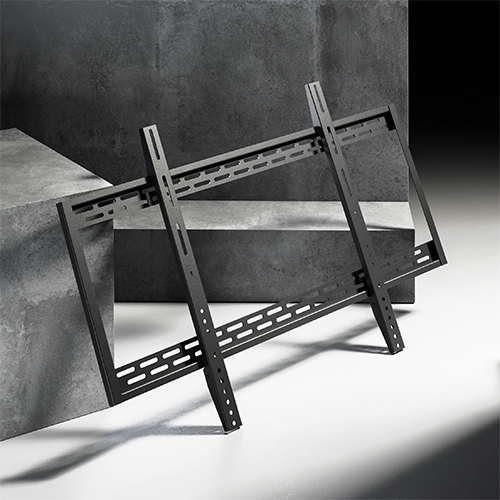

Brateck X-Large Heavy-Duty Fixed Curved Flat Panel Plasma/LCD TV Wall Mount Bracket for 60′- 100′ TVs, 1009x630x32mm | LP37-69F

X-Large Heavy-duty Fixed Wall Mount The popular model LP37-69F is designed to fit any 60′ ~ 100′ Flat Panel TV up to 100kgs/220lbs. Its automatically click-in spring lock with easily-release cord easily and securely attaches your super large flat panels to wall. Strength has been tested for a minimum of four times its stated load capacity.

FEATURES

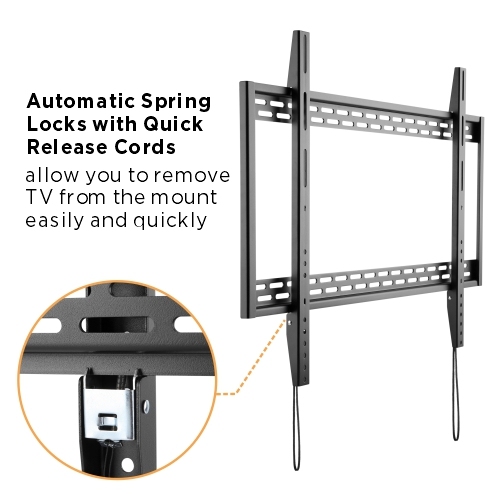

●Automatically Click-in Spring Lock: helps TV brackets snap into place for added safety
●Open Architecture: provides increased ventilation and easier access to wires

SPECIFICATION
Product Category: Fixed TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=3mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet (Wall Plate THK=0.12′ cold-rolled sheet,Bracket Arm THK=0.079′ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 1009x630x32mm (39.7’x24.8’x1.3′)
Fit Screen Size: 60′-100′
Fit Curved TV: Yes
Mounting Hole Pattern : VESA Universal
VESA Compatible: 200×200,300×300,400×200,400×400,600×400,800×400,800×600,900×600
Weight Capacity: 100kg (220lbs)
Strength Tested: 4 Times Approved
Profile: 32mm (1.3′)
Installation: Double Stud(406mm/450mm/600mm),Solid Wall
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: No
Certification: UL

Product Last Updated: 11/12/2025
