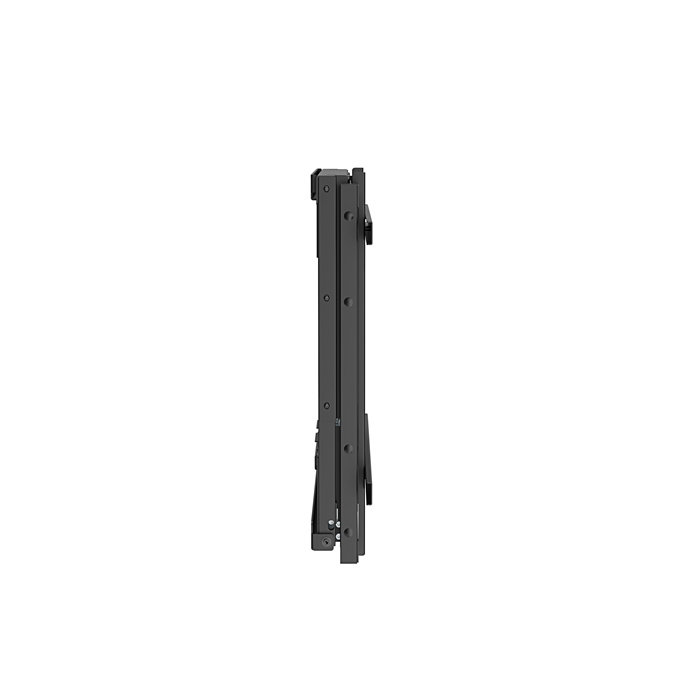

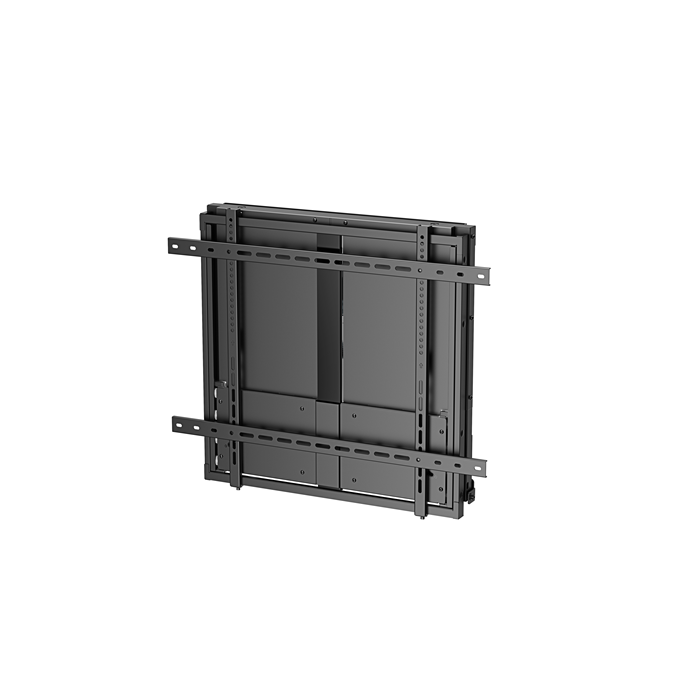

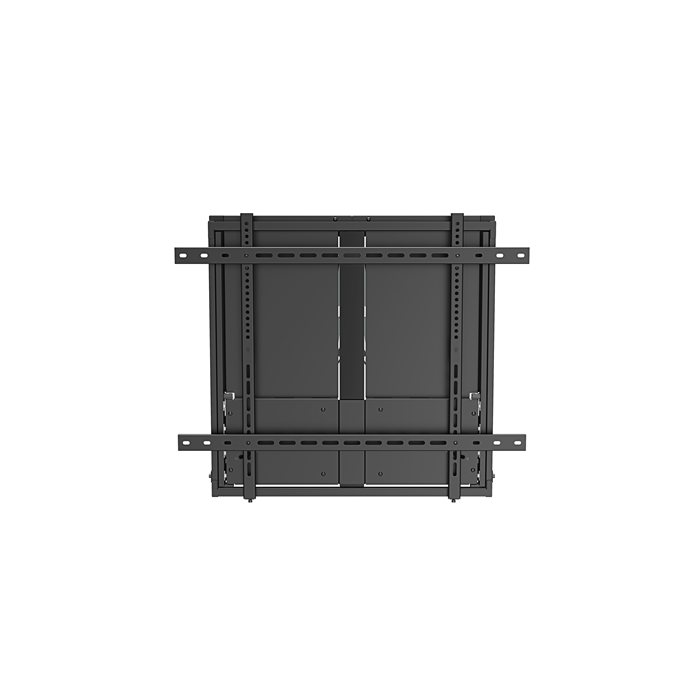

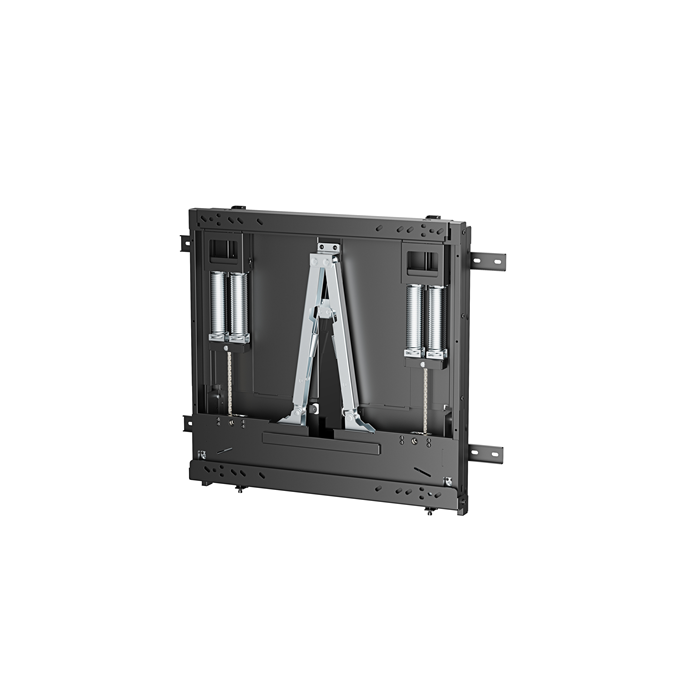

Brateck Manual Height-Adjustable Display Wall Mount for most 75′-90′ TVs Weight Capacity: 60~90kg, VESA Compatible: 200×200 up to 800×600 Black(LS) | HAW400E-90

Brateck Manual Height-Adjustable Display Wall Mount for most 75′-90′ TVs Weight Capacity: 60~90kg, VESA Compatible: 200×200 up to 800×600 Matte Black

FEATURES
Smooth and Effortless Height Adjustment: high-low adjustment with finger touch positioning
●Weight Balance Design: easily accommodates the different weights of displays
●Heavy-Duty steel construction holds the heaviest TVs with confidence.
●Compact Design: allows the mount to hide behind the screen when not in use
●High Quality Powder-Coated Finish: features a stylish anti-scratch surface

SPECIFICATIONS
Product Category: Interactive Whiteboard Wall Mount
Rank: Premium
Material: Aluminum,Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=2.5mm pickling sheet,Wall Plate THK=3mm pickling sheet (Bracket Arm THK=0.098′ pickling sheet,Wall Plate THK=0.12′ pickling sheet)
Pipe Size: 30x15x1.2mm Square Steel Tube (1.2’x0.59’x0.047′ Square Steel Tube)
Surface Finish: Powder Coating
Color: Matte Black
Dimensions: 107x840x696mm (4.2’x33.1’x27.4′)
Fit Screen Size: 75′-90′
Fit Curved TV: No
Mounting Hole Pattern: VESA Universal
VESA Compatible: 200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,350×350,400×400,600×300,400×600,600×400,700×400,800×400,600×600,800×500,800×600
Max. Mounting Hole: 800×600
Weight Capacity: 60~90kg (132lbs~198lbs)
Strength Tested: 4 Times Approved
Profile: 107mm (4.2′)
Screen Freely Tilting: No
TV Height Range: 400mm (15.7′)
Installation: Solid Wall,Double Stud(406mm/450mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Direction Indicator: Yes
Cable Management: No
Anti-theft: No
Bubble Level: Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Product Last Updated: 23/11/2025
