Brateck KL38-46T Large-Screen Medium Tilt TV Wall Mount, Fit Screen Size: 37′-86′ Up to 75kg, Fit Curved TV, 50x638x425mm (LS) | KL38-46T

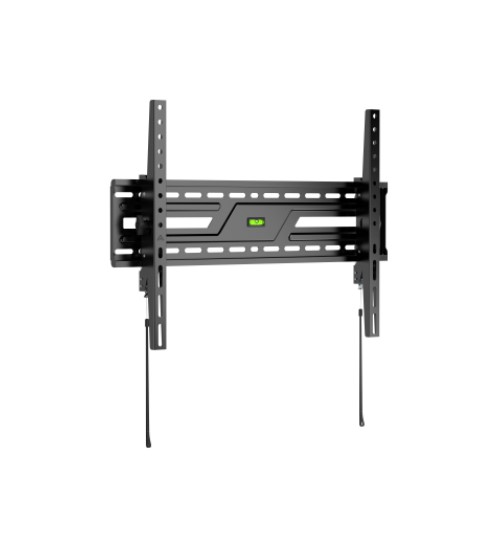

Brateck KL38-46T Large-Screen Medium Tilt TV Wall Mount (new)

FEATURES
●Heavy-Duty Steel Construction: provides extra strength and durability
●Open Architecture: provides increased ventilation and easier access to wires
●Easy-Grip Knobs: for quick tilt and lock
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Integrated Bubble Level: assures alignment

SPECIFICATIONS
Product Category: Tilt TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059′ cold-rolled sheet,Wall Plate THK=0.059′ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black

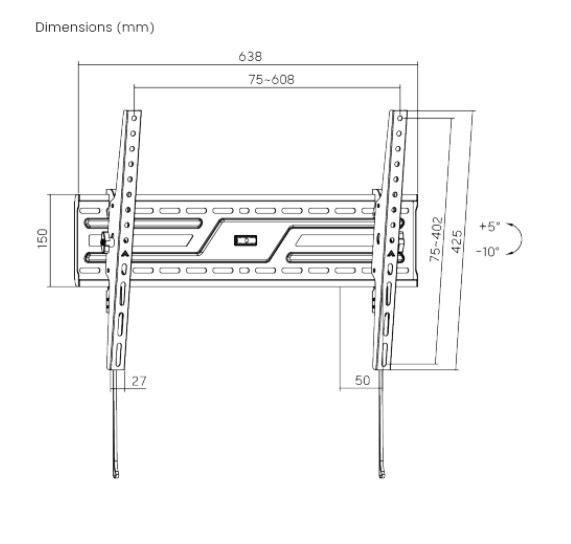

Dimensions: 50x638x425mm (2’x25.1’x16.7′)
Fit Screen Size: 37′-86′
Fit Curved TV: Yes
Mounting Hole Pattern: VESA Universal
VESA Compatible: 75×75,100×100,100×200,200×100,200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,500×300,400×400,600×300,500×400,600×400
Max. Mounting Hole: 608×402
Weight Capacity: 75kg (165lbs)
Strength Tested: 4 Times Approved
Profile: 50mm (2′)
Tilt Range: +5°~-10°
Screen Freely Tilting: No
Installation: Solid Wall,Double Stud(406mm/450mm/600mm)
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
AV Component Shelf: No
Direction Indicator: Yes
Cable Management: No
Anti-theft: No
Bubble Level: Built-in Bubble Level (Integrated on Wall Plate/VESA Panel)
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag
Silk Screen: Can be silkscreen printed

Product Last Updated: 23/11/2025
