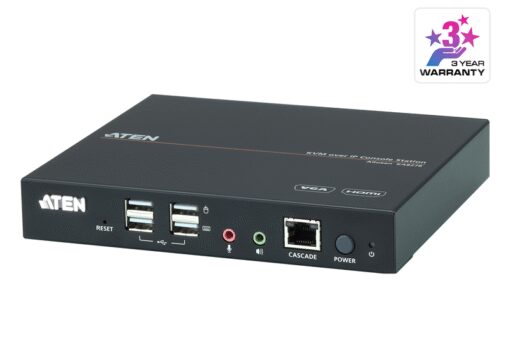

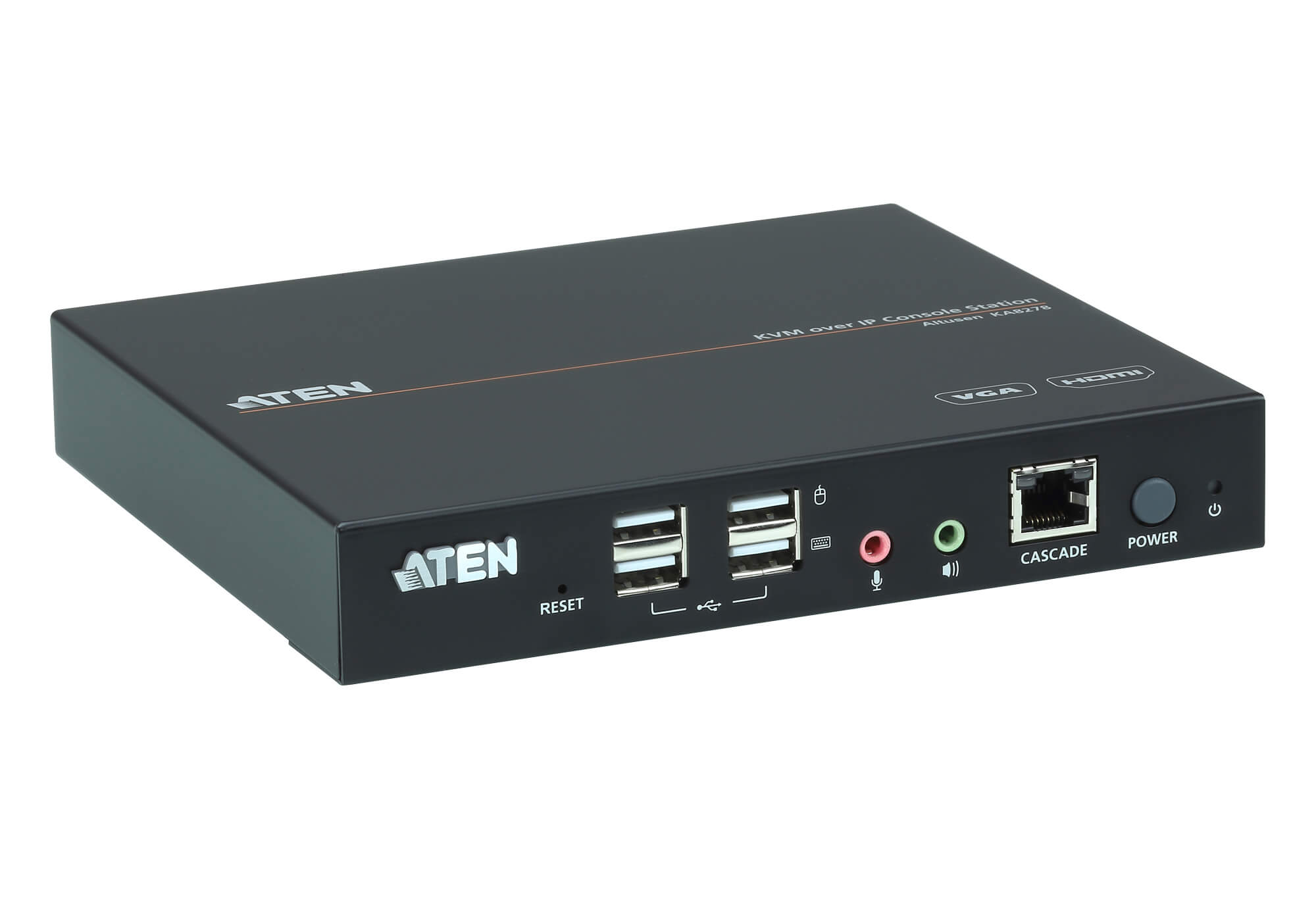

Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with design for 0U rack space | KA8278-AX-U

Aten VGA and HDMI Dual View USB KVM Console station for selected Aten KNxxxx KVM over IP series, supports full HD with small form factor design for 0U rack space
A standalone Java-free console that replaces PC or NB, enabling users to remotely access and control ATEN’s KVM over IP switches*
Advanced FPGA graphics processor – with a Full HD resolution of 1920 x 1200
Panel Array Mode™ – allows administrators to monitor the video output of up to 64 servers on one screen simultaneously
Space-saving 0U rack mount design for rear rack mounting

Specifications

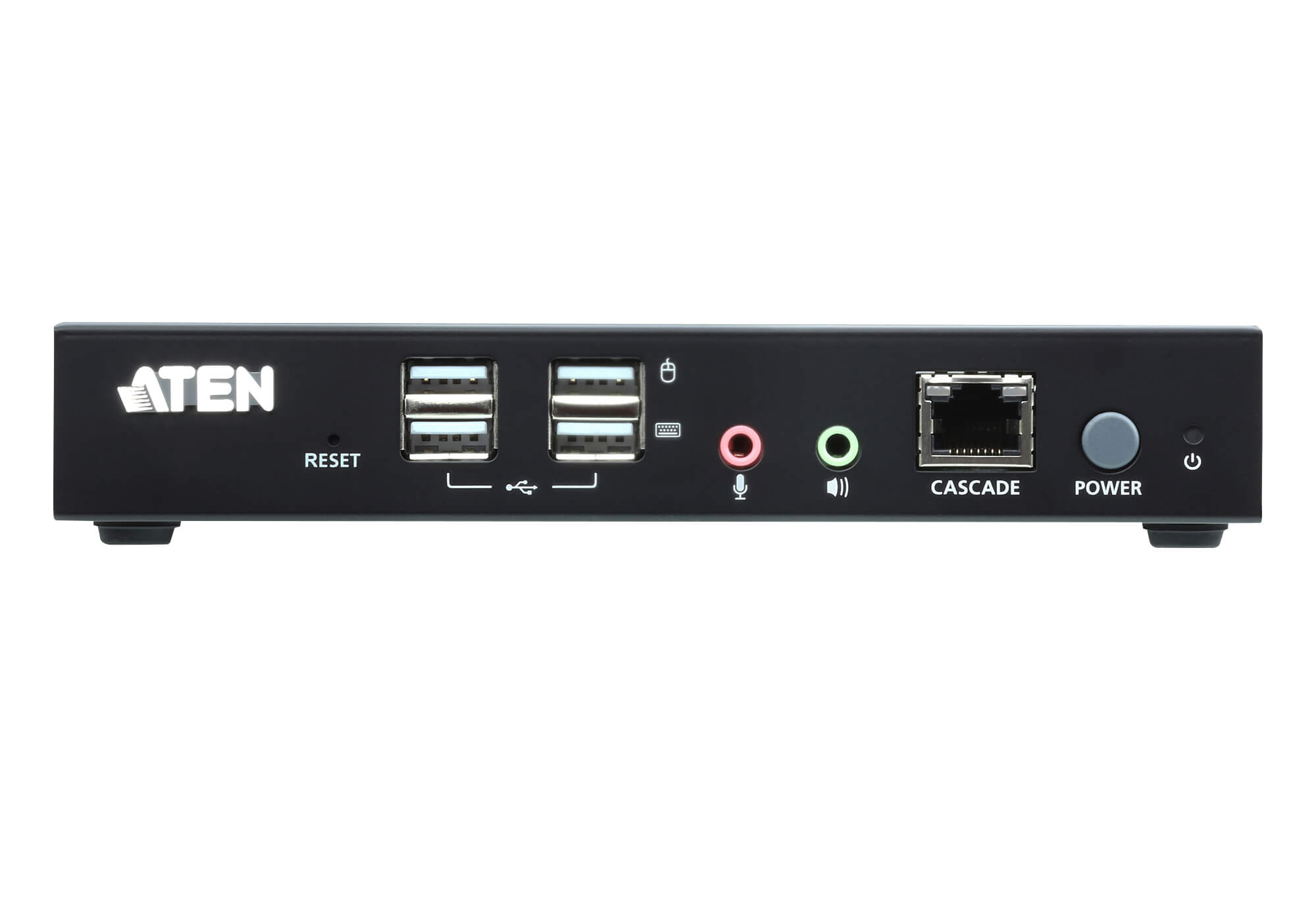

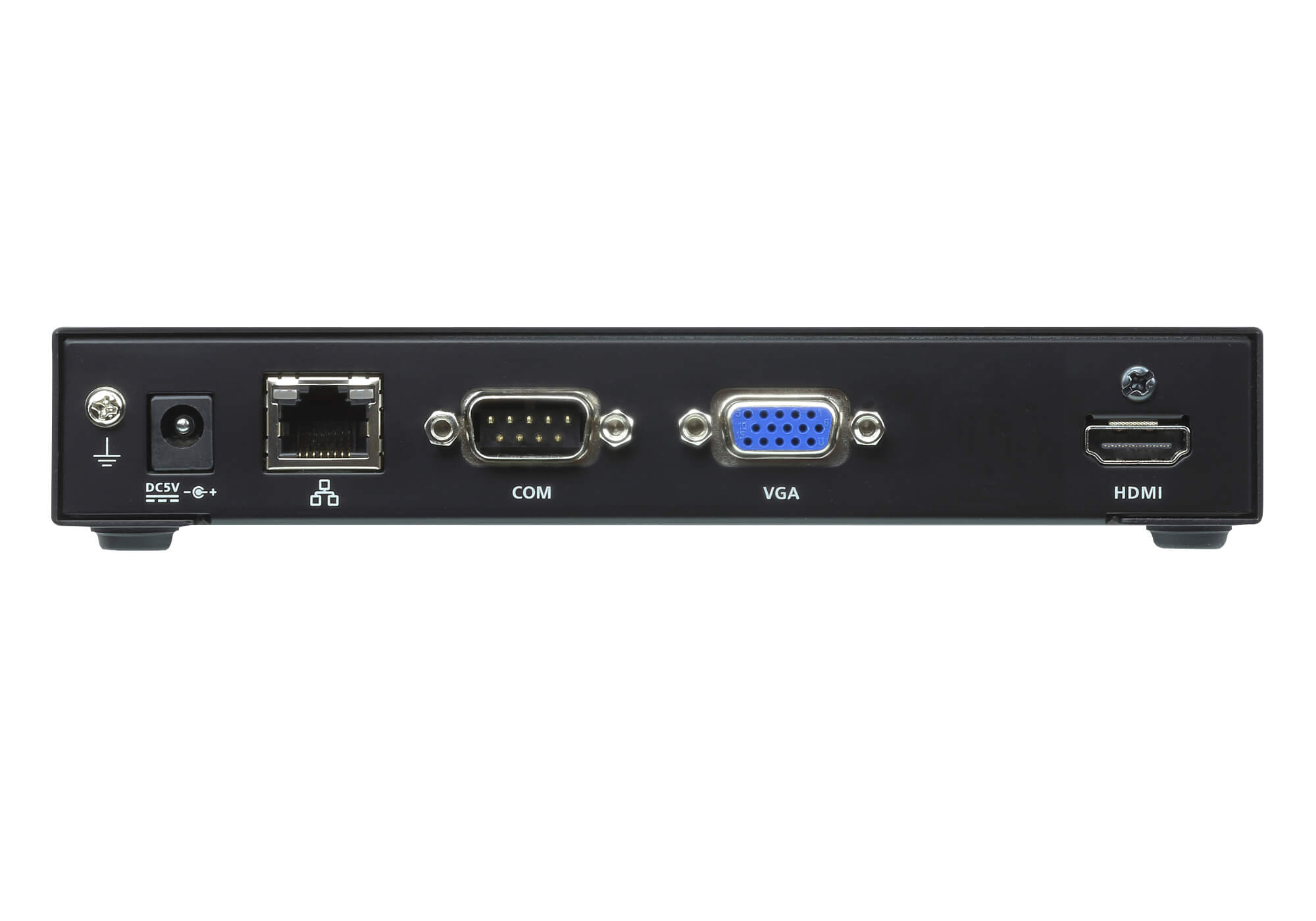

Connectors
Video 1 x HDB-15 Female
1 x HDMI Female
RS-232 1 x DB-9 Male
Power 1 x DC Jack
Audio 2 x Audio Jack Female
LAN Ports 1 x RJ-45 Female
Keyboard 1 x USB Type-A Female
Mouse 1 x USB Type-A Female
USB Port 2 x USB Type-A Female
Cascade Port 1 x RJ-45 Female
LEDs
Power 1 (Blue)
Switches
Power 1 x Push button
Reset 1 x Semi-recessed Push button
Video 1920 x 1200 @ 60Hz
Power Consumption DC 5V:6.53W:56.18BTU
Environmental
Operating Temperature 0 -40°C
Storage Temperature -20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.80 kg ( 1.76 lb )
Dimensions (L x W x H) 17.42 x 15.54 x 2.88 cm
(6.86 x 6.12 x 1.13 in.)
Compatible Appliances
KVM over IP switches KN1132V, KN2116VA, KN4116VA, KN2132VA, KN4132VA, KN4164V, KN8132V, KN8164V, KN2124VA, KN4124VA, KN2140VA, KN4140VA, CN8000A, KN1000A.

Product Last Updated: 03/06/2025
