Aten Rackmount KVM Switch Single Rail 16 Port VGA PS/2-USB w/ 19′ LCD Display, 2x Custom KVM Cables, 1280×1024@75hz Display, LED Illumination | CL5716N-ATA-AU

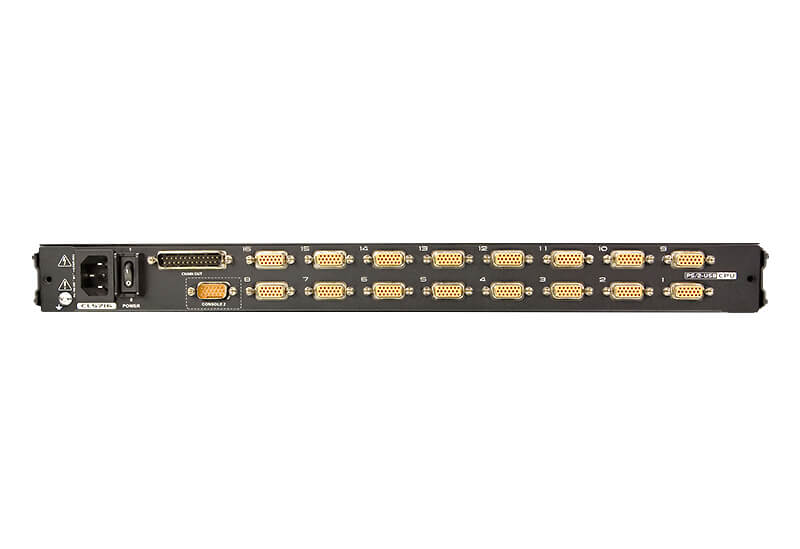

The CL5716 Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

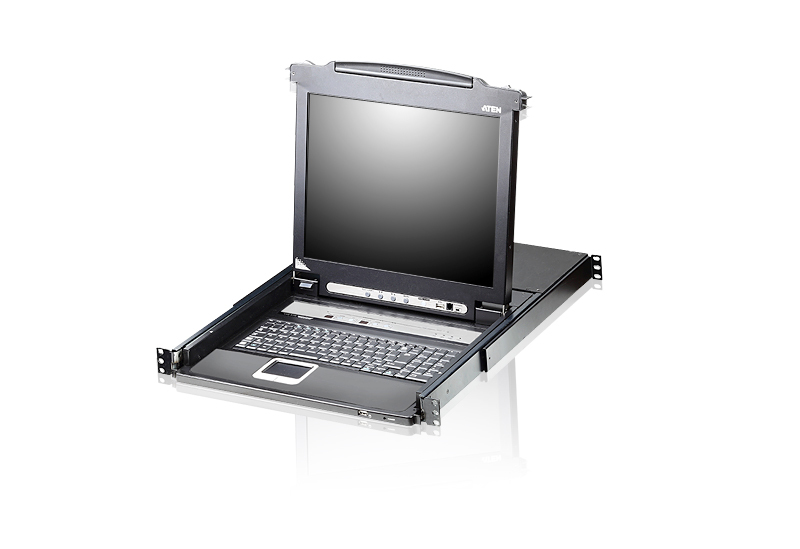

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17′ or 19′ LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing.

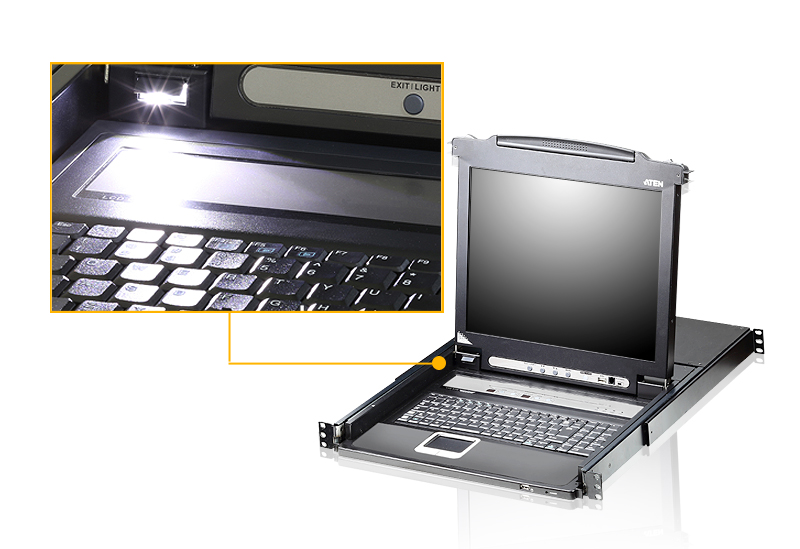

Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with 17′ or 19′ LED-backlit LCD monitor in a Slideaway™ housing
Available with or without Fingerprint Identification Reader** – the unit is available as Fingerprint Identification Reader and NON-Fingerprint Identification Reader models
Space saving technology – up to two consoles (one bus) control up to 16 computers
Daisy-chain up to 31 additional units – control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A)
Dual Interface – supports computers and console with PS/2 or USB keyboards and mice
LCD module USB port allows each computer to access USB peripherals*
LCD module rotates up to 115 degrees for a more comfortable viewing angle
Multiplatform support – Windows, Linux, Mac, and Sun
Supports multimedia USB keyboards for Windows, Mac and Sun
Auto PS/2 and USB interface detection
Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
Superior video quality – supports resolutions up to 1280 x 1024 @ 75 Hz
