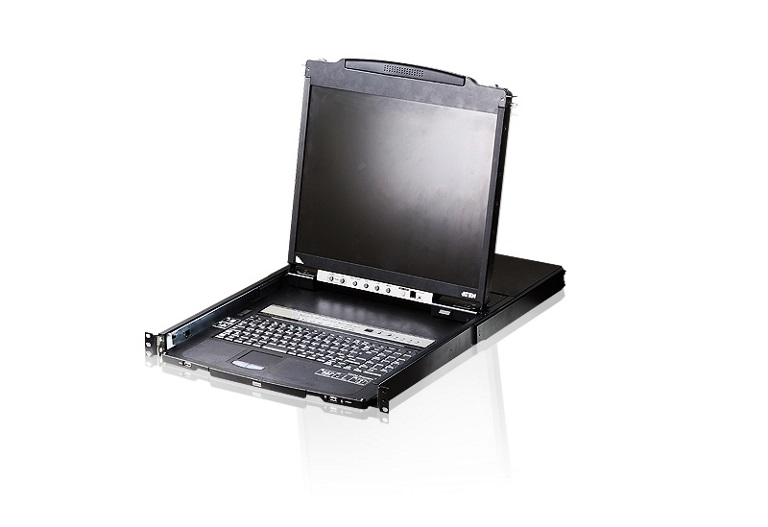

Aten Rackmount KVM Switch Dual Rail 8 Port VGA PS/2-USB w/ 19′ LCD Display, 2x Custom KVM Cables Included, 1280×1024@75hz Display, LED Illumination | CL5808N-ATA-AU

Computer Connections:
◦Direct: 8
◦Max.: 256 (via Daisy-chain)
•Port Selection: OSD, Hotkeys, Pushbuttons
•Connectors:
◦External Console Port: 1 x SPHD-18 Male (Yellow)
◦External Mouse Port: 1 x USB Type-A Female (White)
◦KVM Ports: 8 x SPHD-17/18 Female (Yellow)
◦Daisy-chain Port: 1 x DB-25 Male (Black)
◦FW Upgrade: 1 x RJ-11 Female (Black)
◦Power: 1 x 3-prong AC Socket
◦USB Port: 1 x USB Type-A Female
•Switches:
◦Reset: 1 x Semi-recessed Pushbutton
◦Power: 1 x Rocker
◦F/W Upgrade: 1 x Slide
◦LCD Adjust: 4 x Pushbutton
◦LCD On/Off: 1 x LED Pushbutton (Orange)
◦Port Selection:
◦2 x Pushbutton (LCD);
◦8 x Pushbutton (Keyboard)
◦Station Selection: 2 x Pushbutton
•LEDs:
◦On Line: 8 (Orange)
◦Selected: 8 (Green)
◦Station ID: 2 x 7-segment LED Display (Orange)
◦Power: 1 (Dark Green)
◦Lock:
◦Num: 1 (Green)
◦Caps: 1 (Green)
◦Scroll: 1 (Green)
•Emulation – Keyboard/Mouse: PS/2, USB
•Video: 1280 x 1024 @ 75 Hz; DDC2B
•Scan Interval (OSD Select): 1–255 sec.
•I/P Rating: 100–240 V AC, 50/60 Hz, 1 A
•Power Consumption: 120V, 30.1W ; 230V, 30.7W
•Environment:
◦Operating Temp.: 0 ~ 50°C
◦Storage Temp.: -20 ~ 60°C
◦Humidity: 0 ~ 80% RH, Non-condensing
•Physical Properties:
◦Housing: Metal + Plastic
◦Weight: 14.83 kg
◦Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm
•Package Contents:
◦1 x CL5808 KVM Switch with Standard Rack Mounting Kit
◦2 x Custom KVM Cables
◦1 x 5-in-1 Console Cable
◦1 x Firmware Upgrade Cable
◦1 x Power Cord
◦1 x User Instructions

Product Last Updated: 11/12/2025
