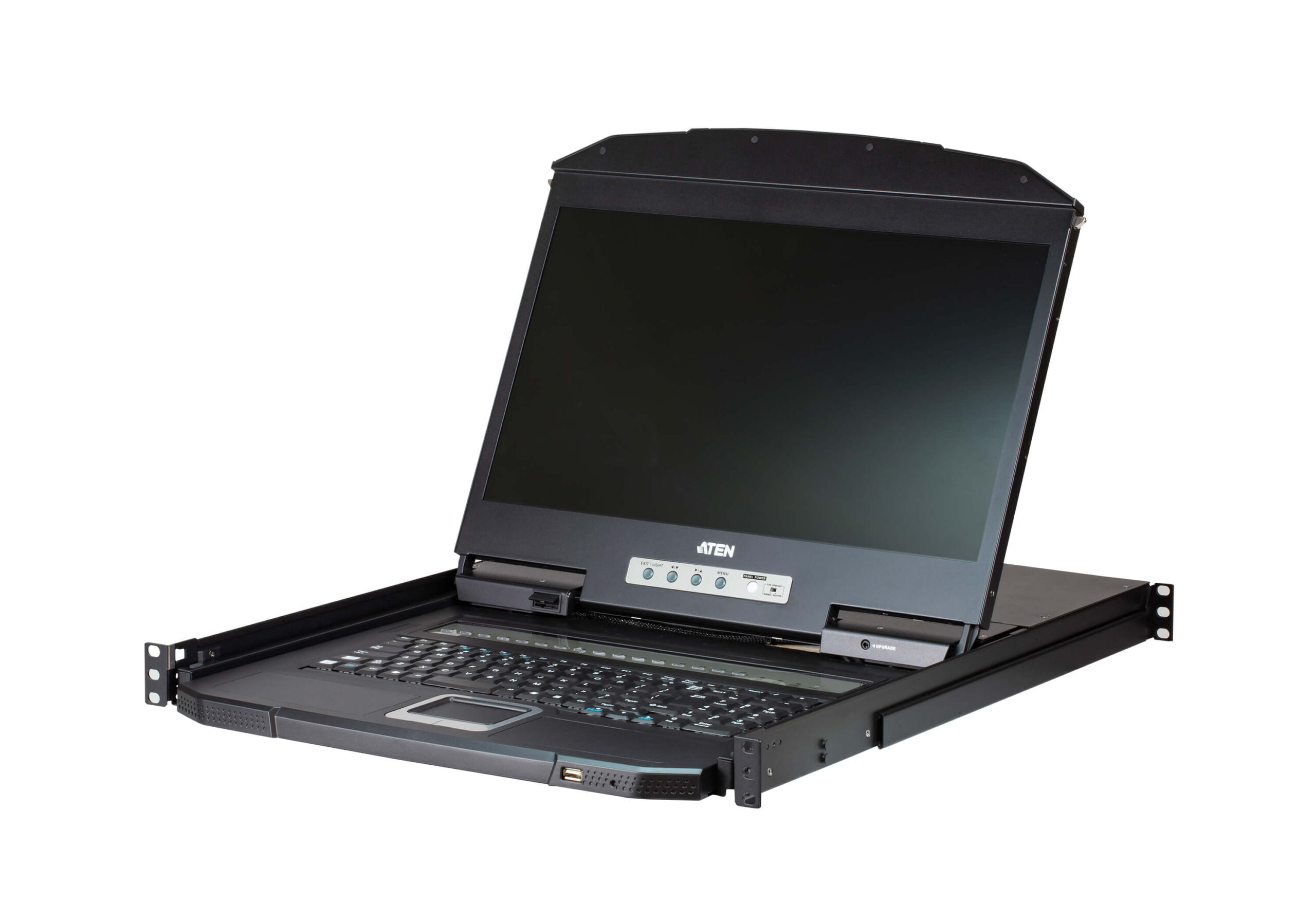

Aten Rackmount KVM Switch 16 Port VGA w/ 18.5′ LCD Display, 2x Custom KVM Cables Included, 1366×768@60hz Display, Short Depth Design | CL3116NX-ATA-AU

Aten 18.5′ Short Depth 16 Port LCD KVM, can be mounted up to a depth of 42cm to 72cm and LCD panel with 1366 x 768 resolution, includes 2 1.8m VGA USB KVM Cable

Exclusive LED illumination light designed to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated LCD KVM console with an 18.5” LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Cascade up to 2 levels – CL3116 controls up to 256 computers from a single console
Keyboard and mouse emulation (PS/2 and USB)

Specifications
Function CL3116NX
Computer Connections
Direct 16
Connectors
KVM Ports 16 x SPHD Female (Yellow)
Switches
Port Selection 16 x Pushbutton
Video
Input Video Resolution up to 1920 × 1200 @ 60 Hz;
1366 × 768 @ 60 Hz, DDC2B
Scan Interval 1-255 seconds
Emulation
Keyboard / Mouse PS/2, USB
Maximum Input Power Rating 100–240 V AC, 50-60 Hz, 1 A
Power Consumption AC110V:14.1W:70BTU
AC220V:14.9W:74BTU
Environmental
Operating Temperature 0-40°C
Storage Temperature -20-60°C
Humidity 0 – 80% RH, Non-condensing
Physical Properties
Housing Metal + Plastic
Rail Type Single Rail
Weight 10.60 kg ( 23.35 lb )
Dimensions (L x W x H) 48.06 x 63.17 x 4.28 cm
Body Dimensions(L x W x H) 44.92 x 58.4 x 4.28 cm

Product Last Updated: 28/04/2025
