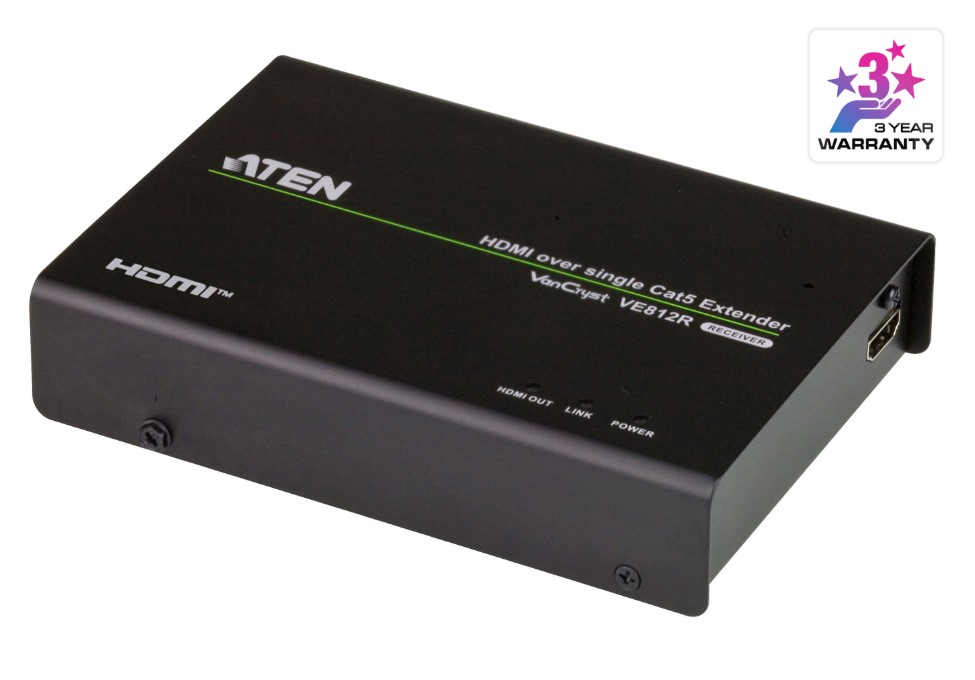

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A) | VE812R-AT-U

Aten HDMI HDBaseT Receiver, supports up to 4096 x 2160 @ 30 Hz (4:4:4) @ 70m (Cat 5e/6) and 100m (Cat 6A)(LS)

Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
HDMI (3D, Deep Color, 4k); HDCP Compatible
Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Long distance transmission – up to 100m
Selects the optimum EDID settings for smooth power-up and highest quality display
Supports up to 340MHz bandwidth for high performance video
Supports Dolby True HD and DTS HD Master Audio
Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15 KV)

Video Output

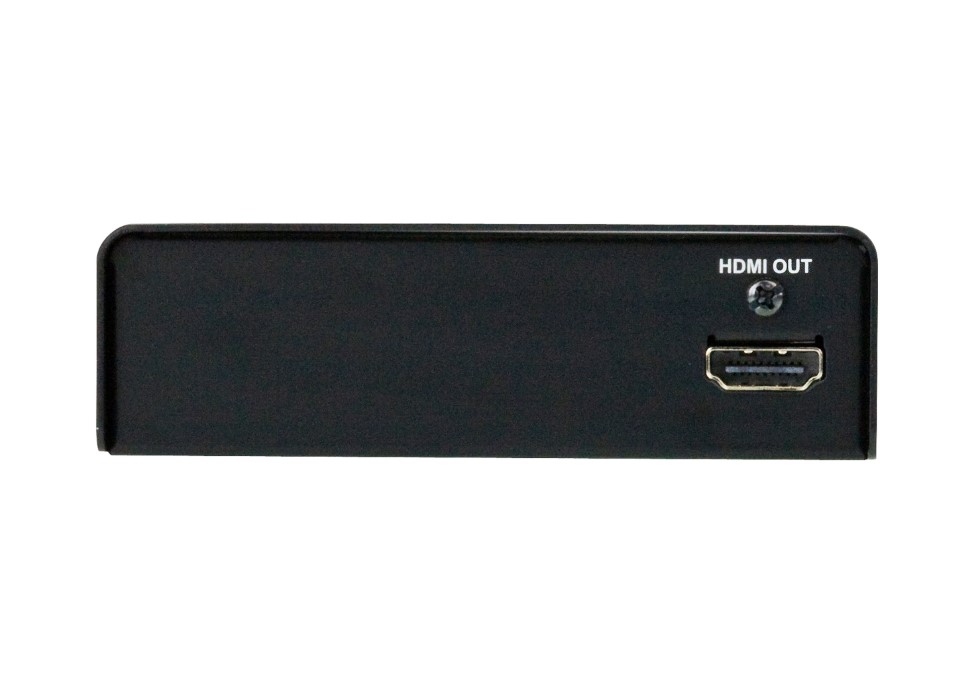

Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance 3 m (2L-7D03H)
Video
Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock Up to 340 MHz
Compliance HDMI (3D, Deep Color, 4K)
HDCP2.2 Compatible
Consumer Electronics Control (CEC)
Max. Resolutions / Distance Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio
Output 1 x HDMI Type A Female (Black)
Connectors

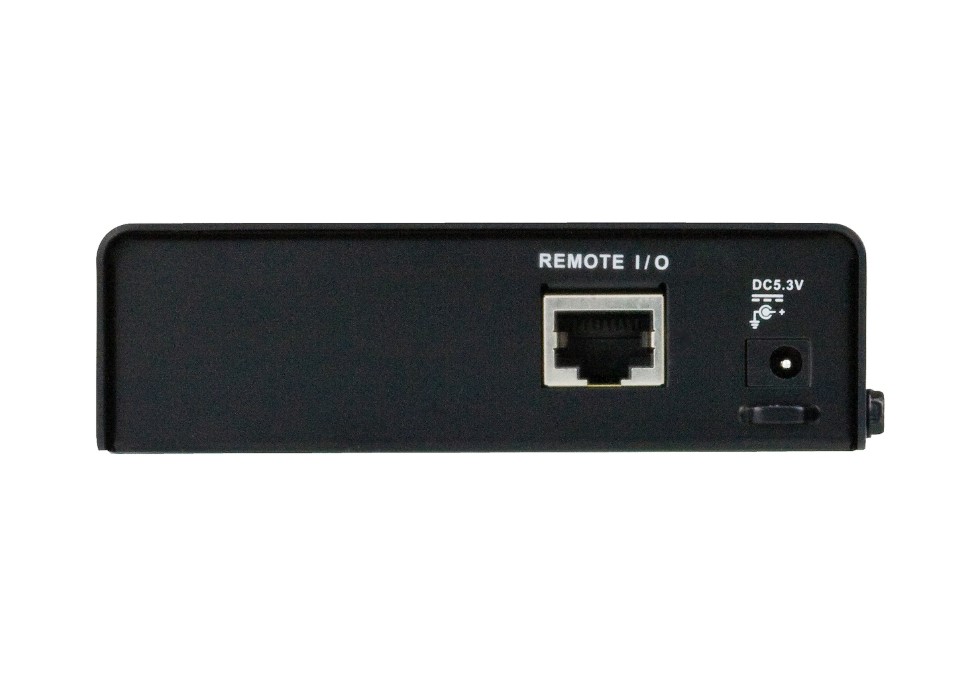

Power 1 x DC Jack
Power Consumption DC5.3V:5.06W:24BTU
Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.41 kg ( 0.9 lb )
Dimensions (L x W x H) 14.17 x 10.30 x 3.00 cm
(5.58 x 4.06 x 1.18 in.)
Carton Lot 5 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Product Last Updated: 23/11/2025
