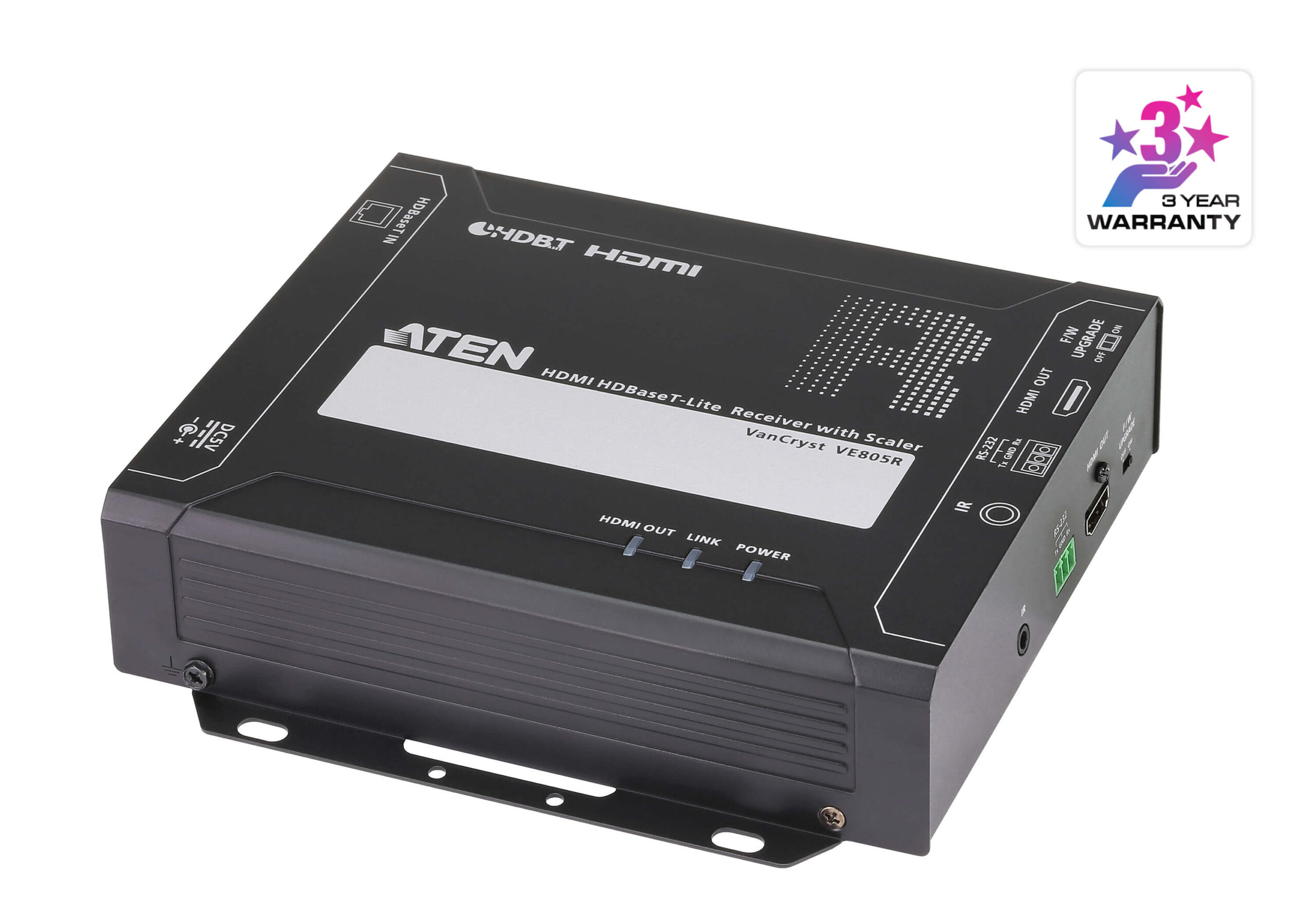

Aten HDMI HDBaseT-Lite Receiver with Scaler, supports up to 1080p @ 70m, with IR and RS232 | VE805R-AT-U

The VE805R HDMI HDBaseT-Lite Receiver with Scaler can be combined with ATEN HDMI HDBaseT products to extend a HDMI display up to 60 m from the HDMI source device using a single Cat 5e/6 cable or up to 70 m via a Cat 6a cable.

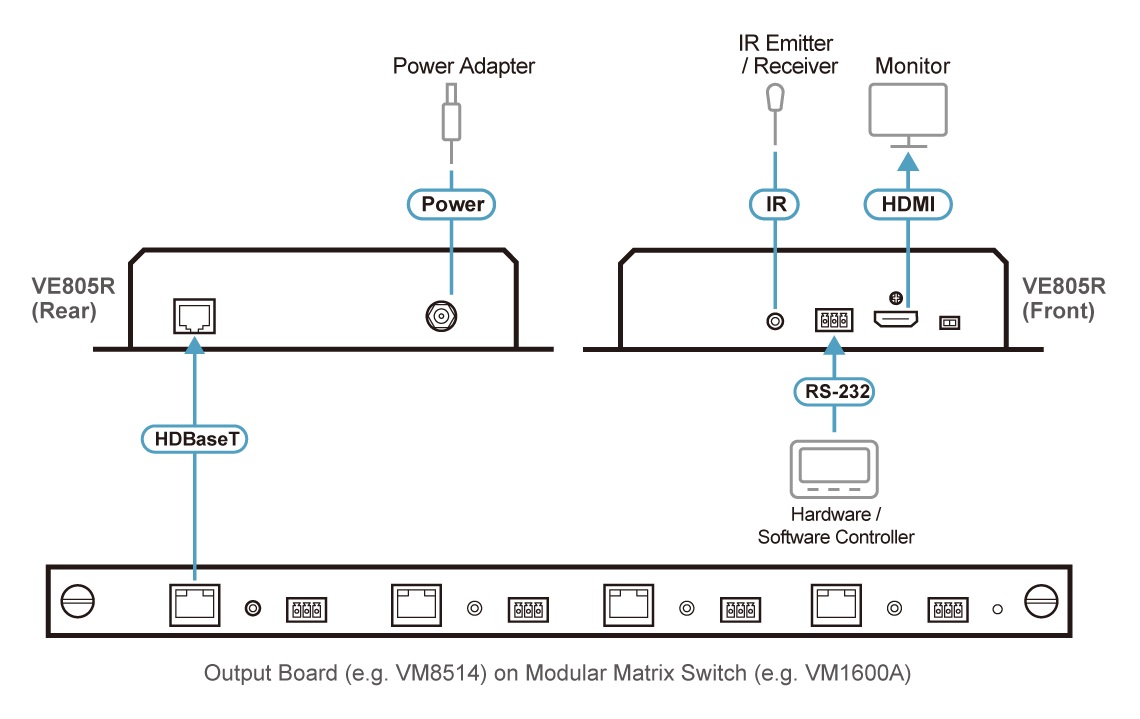

HDBaseT connectivity – extends the connection between the VM8514 HDBaseT outputs and an HDMI display over a long distance via single Cat 5e/6/6a cable
HDBaseT Anti-jamming – resists signal interference during high quality video transmissions using HDBaseT technology
Bi-directional RS-232 channel1 – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
Seamless Switch™ – close-to-zero second switching that provides continuous video streams, real-time switching and stable signal transmissions2
Video Wall – features configurable Video Wall profiles available for custom screen layouts via simple point-n-click web GUI2
Bi-directional IR channel – IR transmission is processed one direction at a time3
Rack-mountable

Video Input

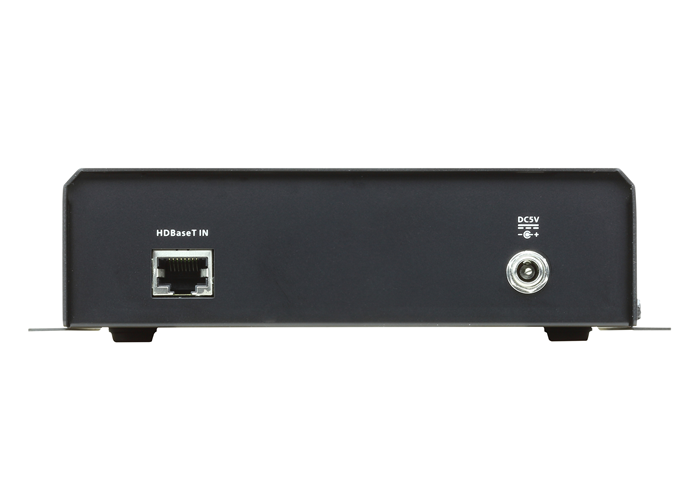

Interfaces 1 x RJ-45 Female (Silver)
Impedance 100 Ω

Video Output

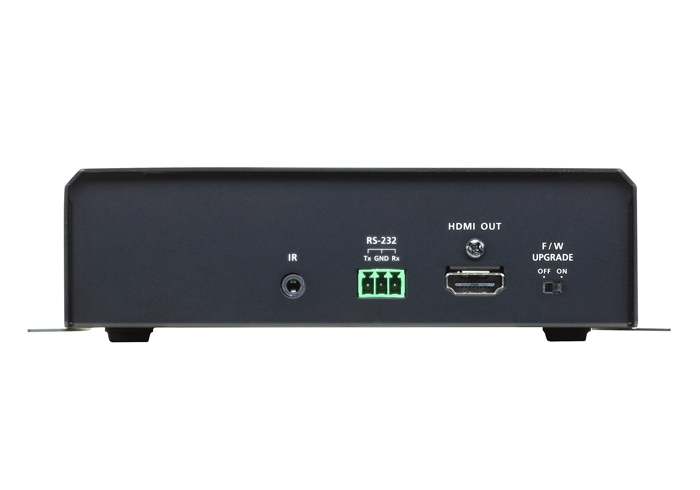

Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3 m

Video
Max. Data Rate 6.75 Gpbs (2.25 Gbps per lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
HDBaseT Compatible
Max. Resolutions / Distance Up to 1080p @60m (Cat 5e/6); 70m (Cat 6a)

Control
RS-232 1 x Captive Screw Connector, 3 Pole
IR 1 x Mini Stereo Jack Female (Black)
Connectors
Power 1 x DC Jack (Sliver)
Switches
Firmware Upgrade 1 x Slide Switch
Power Consumption DC5V:8.36W:39BTU

Environmental
Operating Temperature 0 – 50°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing

Physical Properties
Housing Metal
