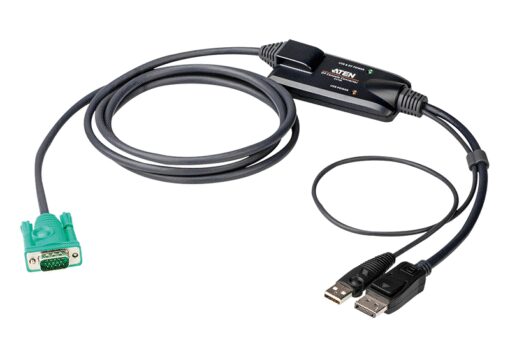

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant | CV190-AT

Aten DisplayPort Console Converter, connects an Aten SPHD (VGA KVM) interface switch to a DisplayPort and USB PC, up to 1920 x 1080 @ 60 Hz, compliant with DP 1.1

Featurs:
Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer
Supports high video resolution – up to 1920 x 1080 @ 60Hz
DisplayPort 1.1 compliant
Supports USB keyboard and mouse
Bus-powered – no external power adapter required
Easy installation – no software required

Console Connections 1
Connectors
To Computer 1 x USB Type A Male
1 x DisplayPort Male
To Switch 1 x SPHD-15 Male
Switches
Power Selected 1 x Slide Switch
LEDs
Status 1 (Green; USB DP Power)
1 (Orange; USB Power)
Video 1920 x 1080 @ 60 Hz
Power Consumption DC5V:1.01W:5BTU
Environmental
Operating Temperature 0-50°C
Storage Temperature -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.21 kg ( 0.46 lb )
Cable Length 1.8 m
Dimensions (L x W x H) 9.00 x 4.30 x 2.18 cm
(3.54 x 1.69 x 0.86 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents
1x CV190 DisplayPort console converter cable

Product Last Updated: 03/06/2025
