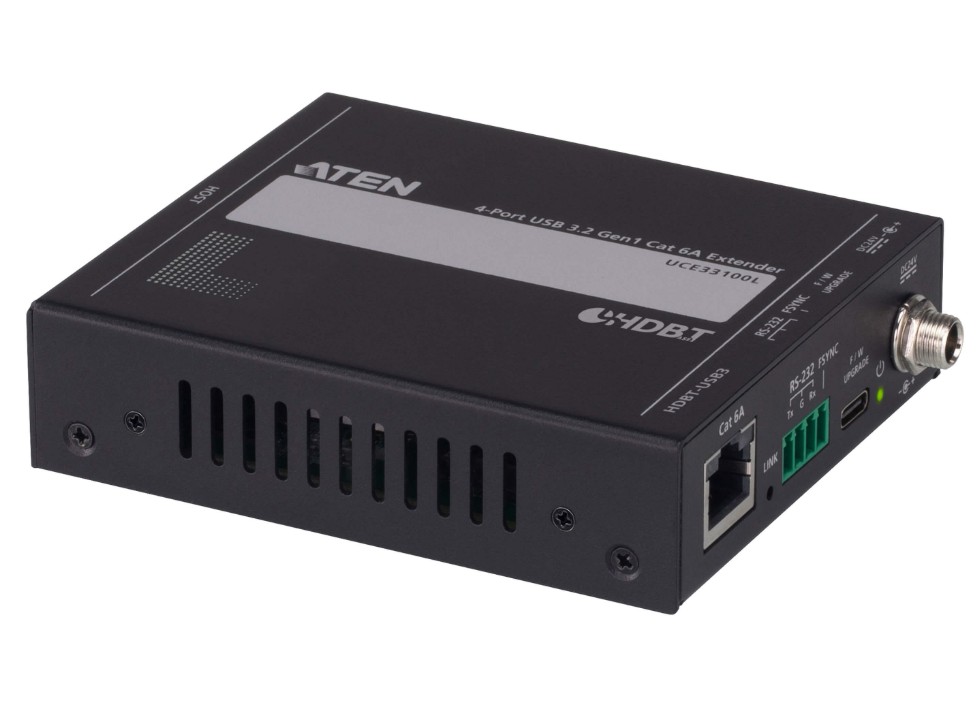

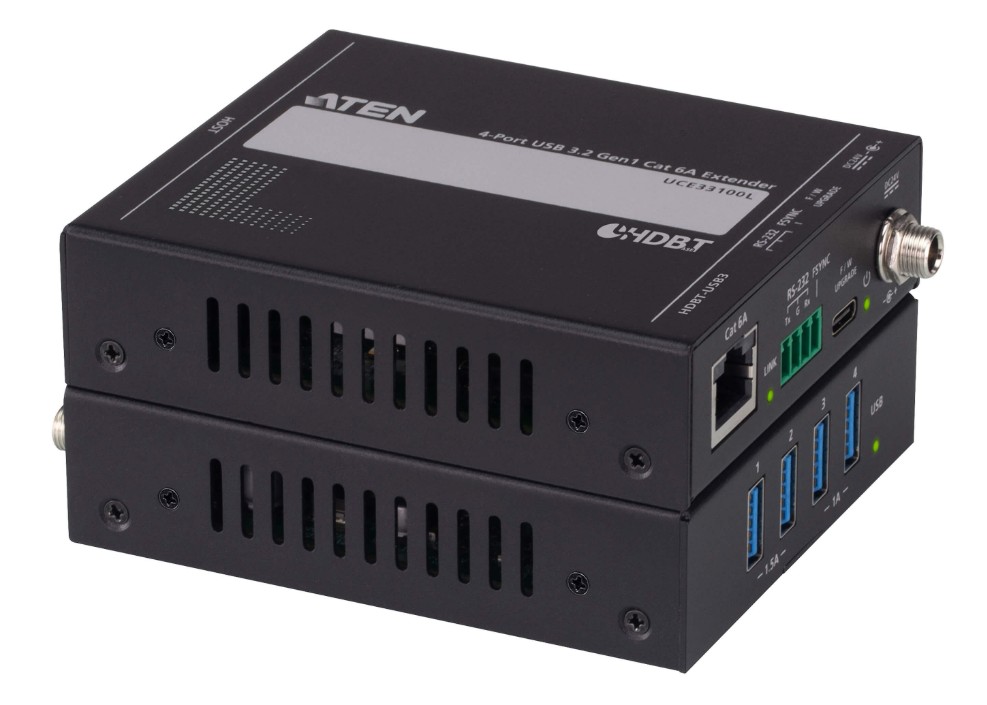

Aten 4-Port USB 3.2 Gen 1 Cat 6A Extender (up to 100 m) | UCE33100-AT-B

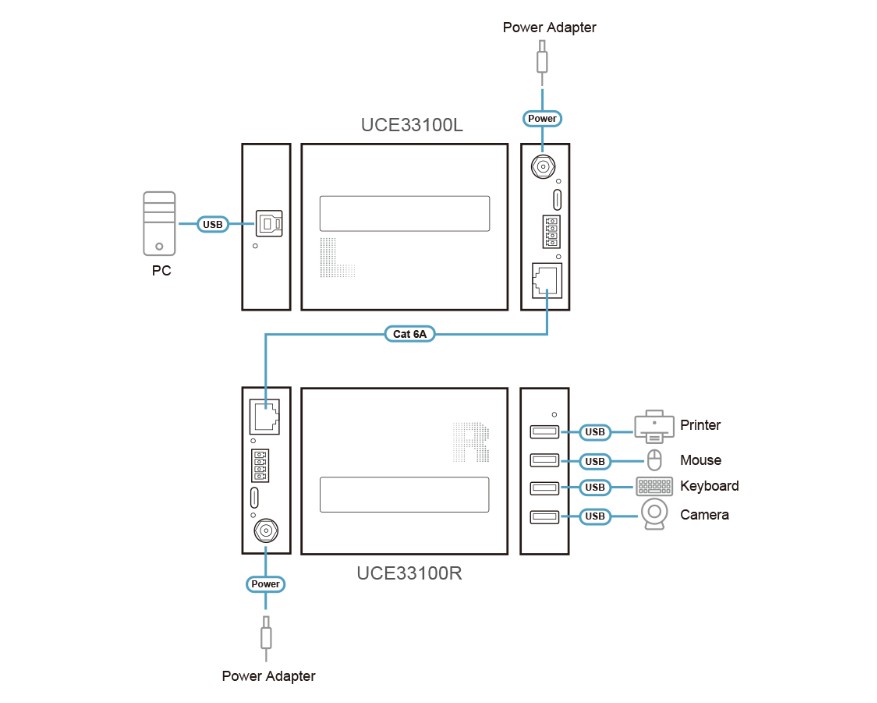

The UCE33100 is a two-piece extension kit that transmits uncompressed USB 3.2 data at up to 5Gbps over a 100 m Cat 6A cable. With four USB Type-A ports built on the remote unit, the connection to multiple USB peripherals, from flash drives, keyboards, mice, and webcams to interactive whiteboards, is made easy. The support for bi-directional RS-232 pass-through facilitates integration into control systems, and apart from that, the Frame Synchronization (FSYNC) GPIO pass-through ports allow bi-directional commands to be sent when it comes to industrial camera implementations. The bi-directional 24V power over cable function eliminates the need for an additional power adapter when either of the local or remote unit receives power.

The UCE33100 supports plug-and-play operation to work flawlessly with all operating systems, assuring hassle-free installation with no extra driver or software required. Flexibility is further enhanced due to the extender’s compact, wall-mountable enclosure, which also helps save space.

A two-piece extension kit that transmits USB signals over a Cat 6A cable
Long distance USB 3.2 data transmission at up to 5Gbps across 100m
Backward compatible with USB 2.0 / 1.1 specifications

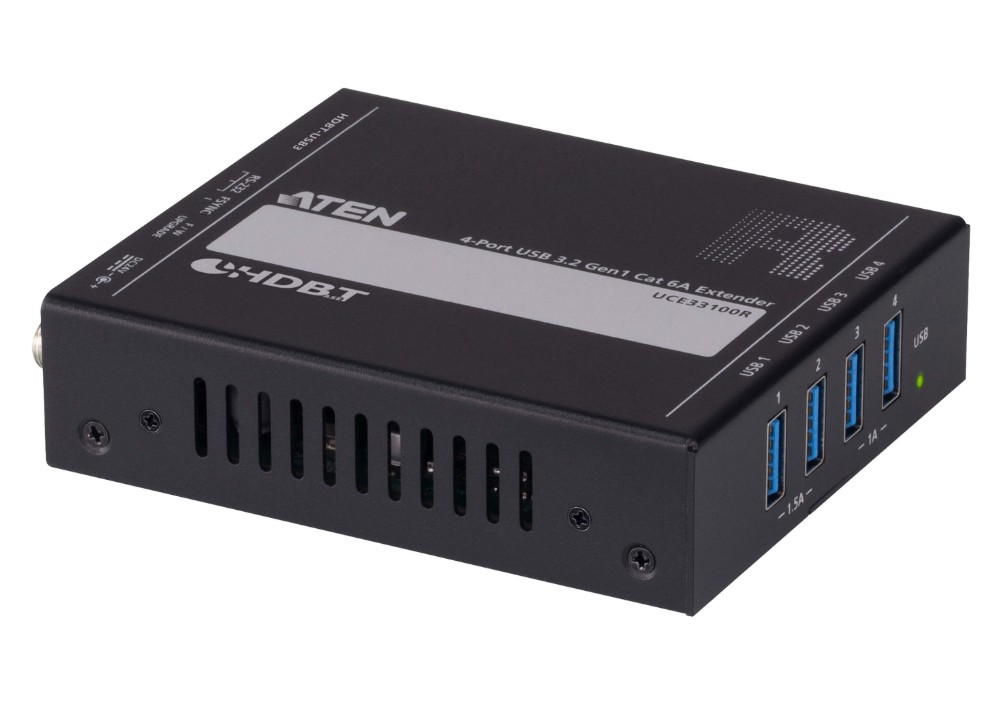

4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals (flash drives, keyboards, mice, webcams, interactive whiteboards, and any other USB-based devices)
Supports bi-directional RS-232 pass-through for integration into control systems
Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications
Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power
Plug-and-play with no driver / software required to work with all operating systems
Compact, wall-mountable enclosure elevates installation flexibility and helps save space

Package Contents
1x UCE33100 Local and Remote Units
1x USB 3.2 Gen 1 Type-A to USB Type-B cable(1.2 m)
2x 4-pin terminal blocks
4x mounting kits
1x power adapter
1x user instructions
