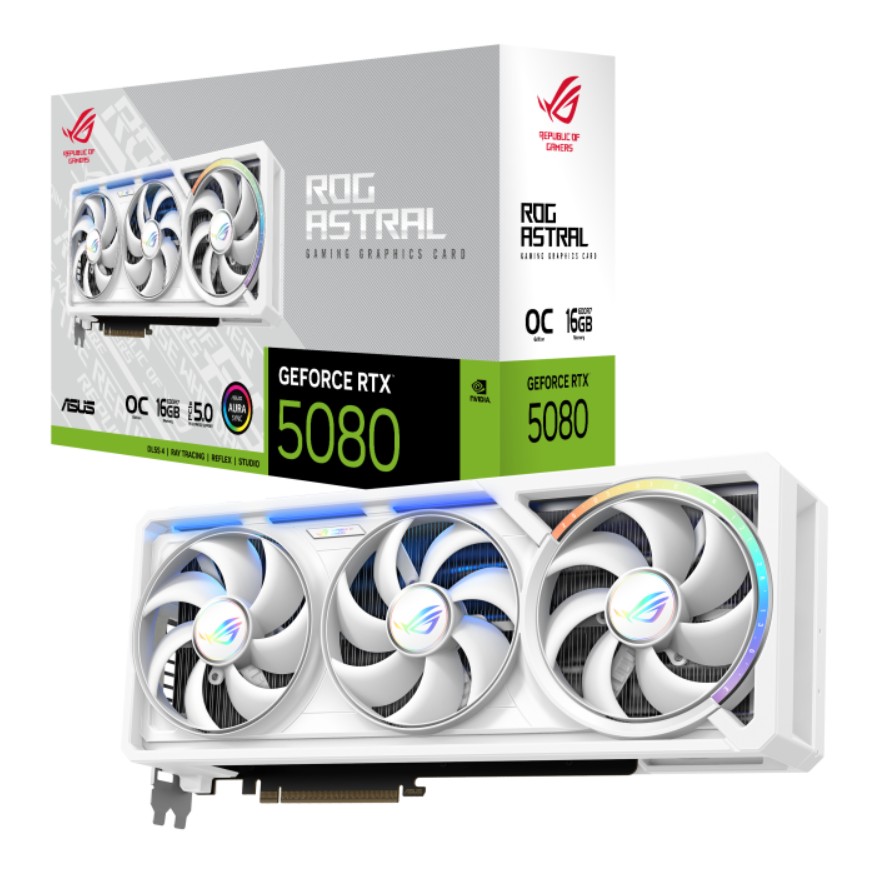

ASUS nVidia GeForce ROG-ASTRAL-RTX5080-O16G-GAMING W OC Edition GDDR7 2760 MHz Boost Clock 30 Gbps 256-bit Digital Max Resolution 7680 x 4320 | ROG-ASTRAL-RTX5080-O16G-WHITE

ASUS nVidia GeForce ROG Astral GeForce RTX™ 5080 16GB GDDR7 OC Edition GDDR7 2760 MHz Boost Clock 30 Gbps 256-bit Digital Max Resolution 7680 x 4320

Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
1899 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
OC mode: 2790 MHz
Default mode: 2760 MHz (Boost Clock)
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x ROG Graphics Card Holder
1 x ROG Velcro Hook Loop
1 x ROG Magnet
1 x ROG Graphics Card Keycap
1 x ROG PCB Ruler
1 x Thank You Card
1 x Adapter Cable (1 to 3)​
Software
ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 76 mm
14.1 x 5.9 x 3 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.8 Slot
AURA SYNC
ARGB
AI Performance: 1899 AI TOPS
Powered by the NVIDIA Blackwell architecture and DLSS 4
OC mode: 2790 MHz (OC mode)/ 2760 MHz (Default mode)
Quad-fan design boosts air flow and pressure by up to 20%
Patented vapor chamber with milled heatspreader for lower GPU temperatures
Phase-change GPU thermal pad ensures optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability
3.8-slot design: massive heatsink and fin array optimized for airflow from the four Axial-tech fans
Secure GPU protection with GPU Guard technology securing four corners of the GPU and GPU bracket ensures stable mounting
​Full metal diecast shroud, frame backplate, and rear I/O bracket brace the PCB for rigidity.
Powerful 50-amp MOSFETs with extra power phases help ensure enhanced performance, stability and higher overclocking potential
Protective PCB coating guards against moisture, dust, and extreme temperatures.
Auto-Extreme manufacturing process for precision and reliability
GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls and system monitoring

Product Description Last Updated: 23/09/2025
