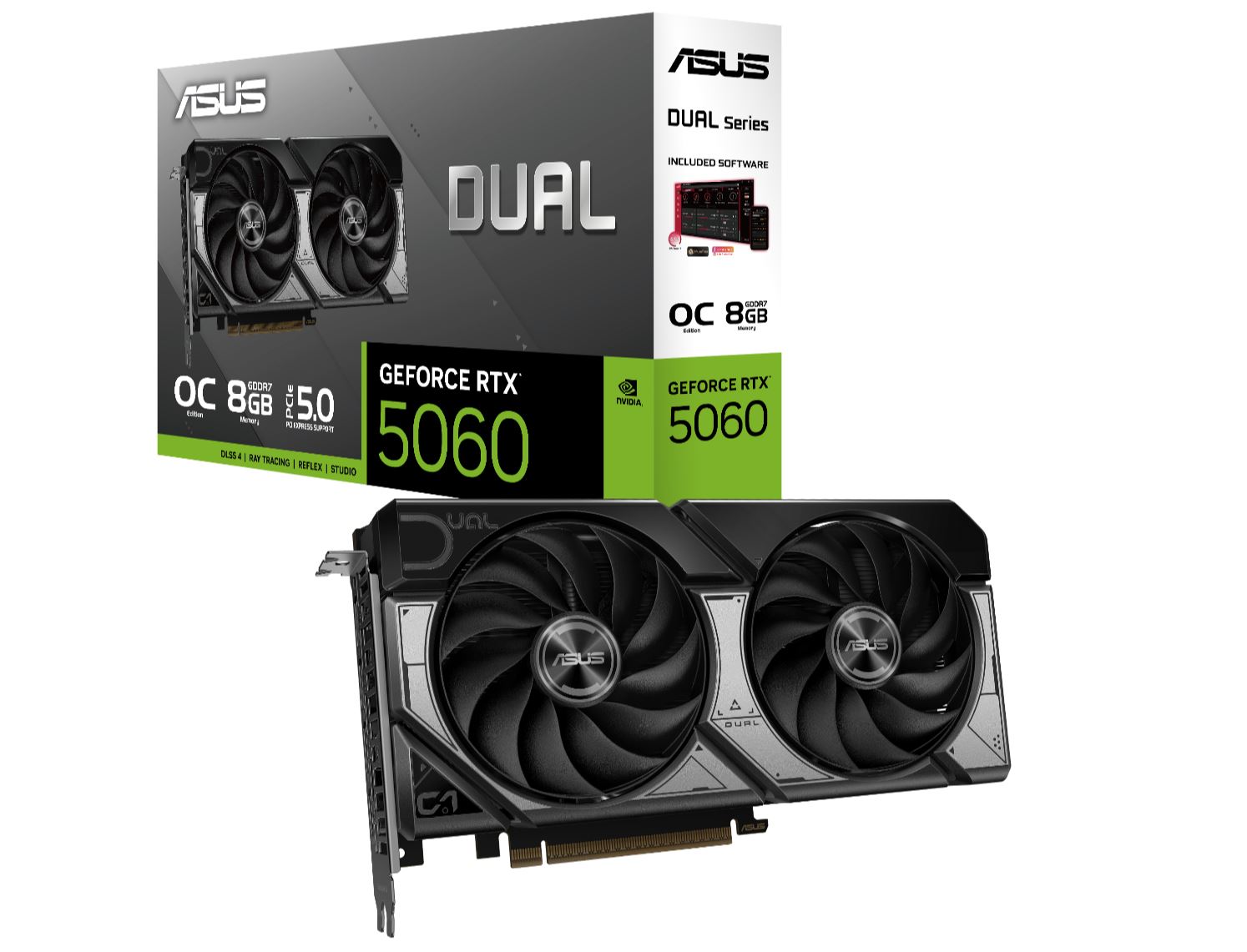

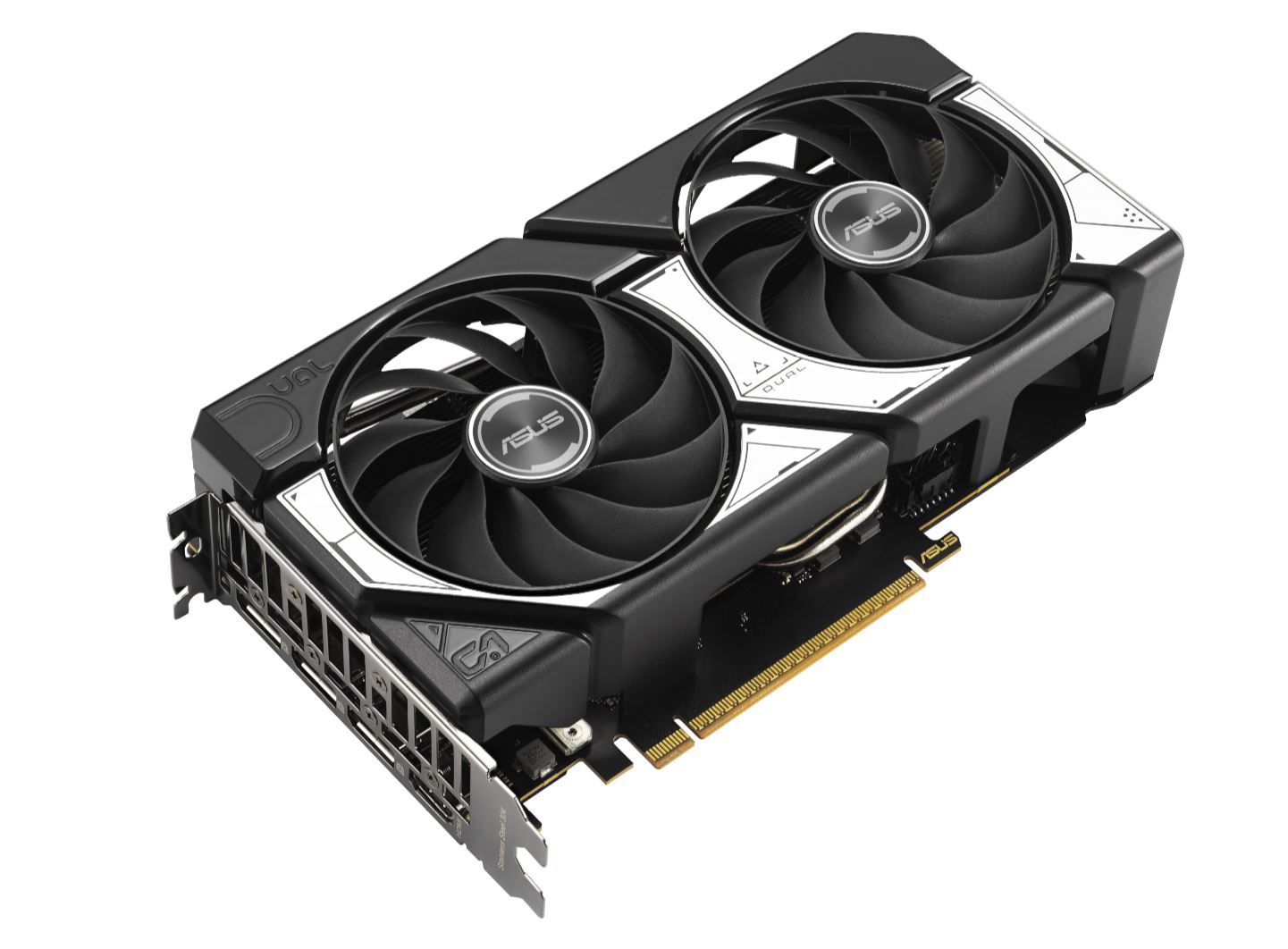

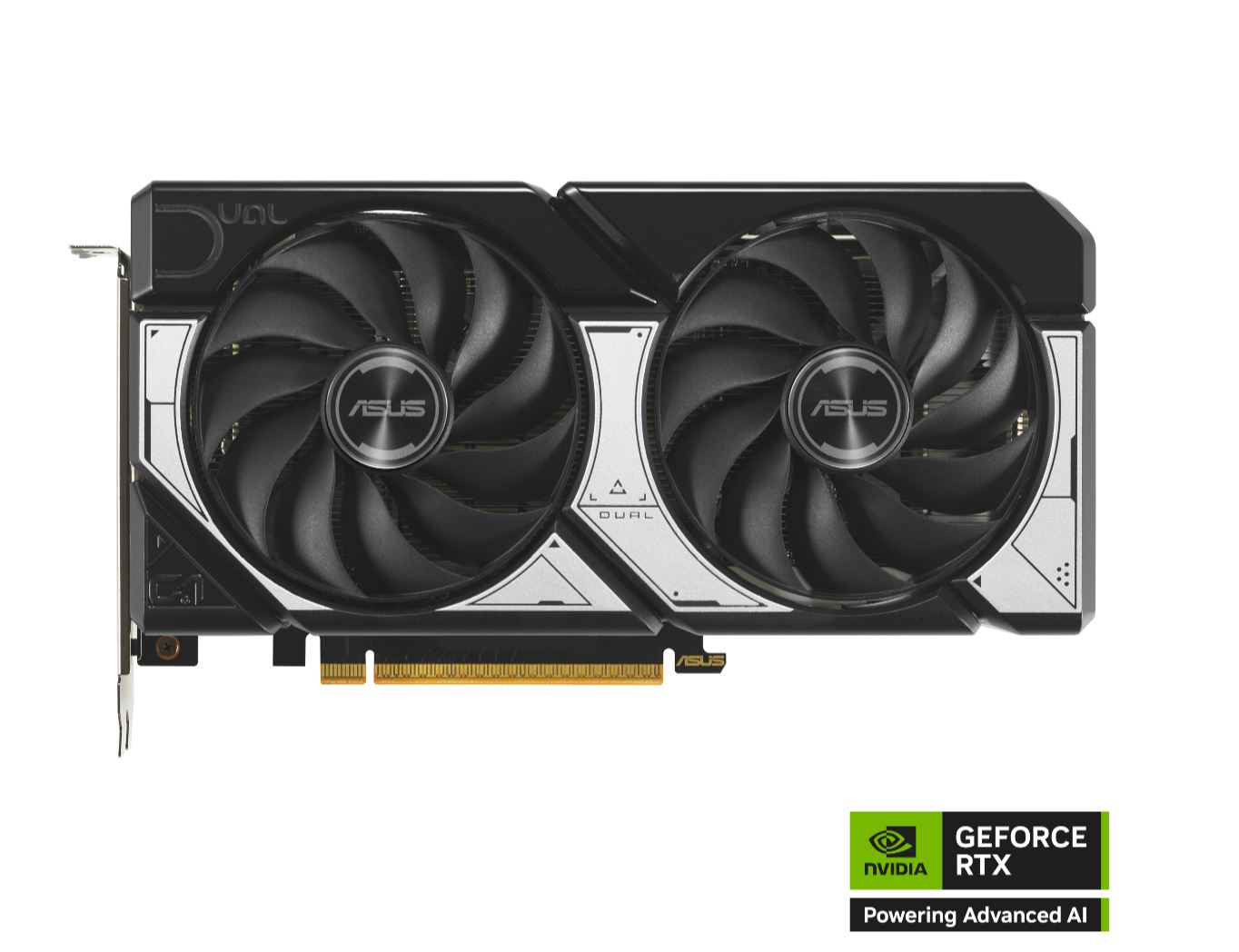

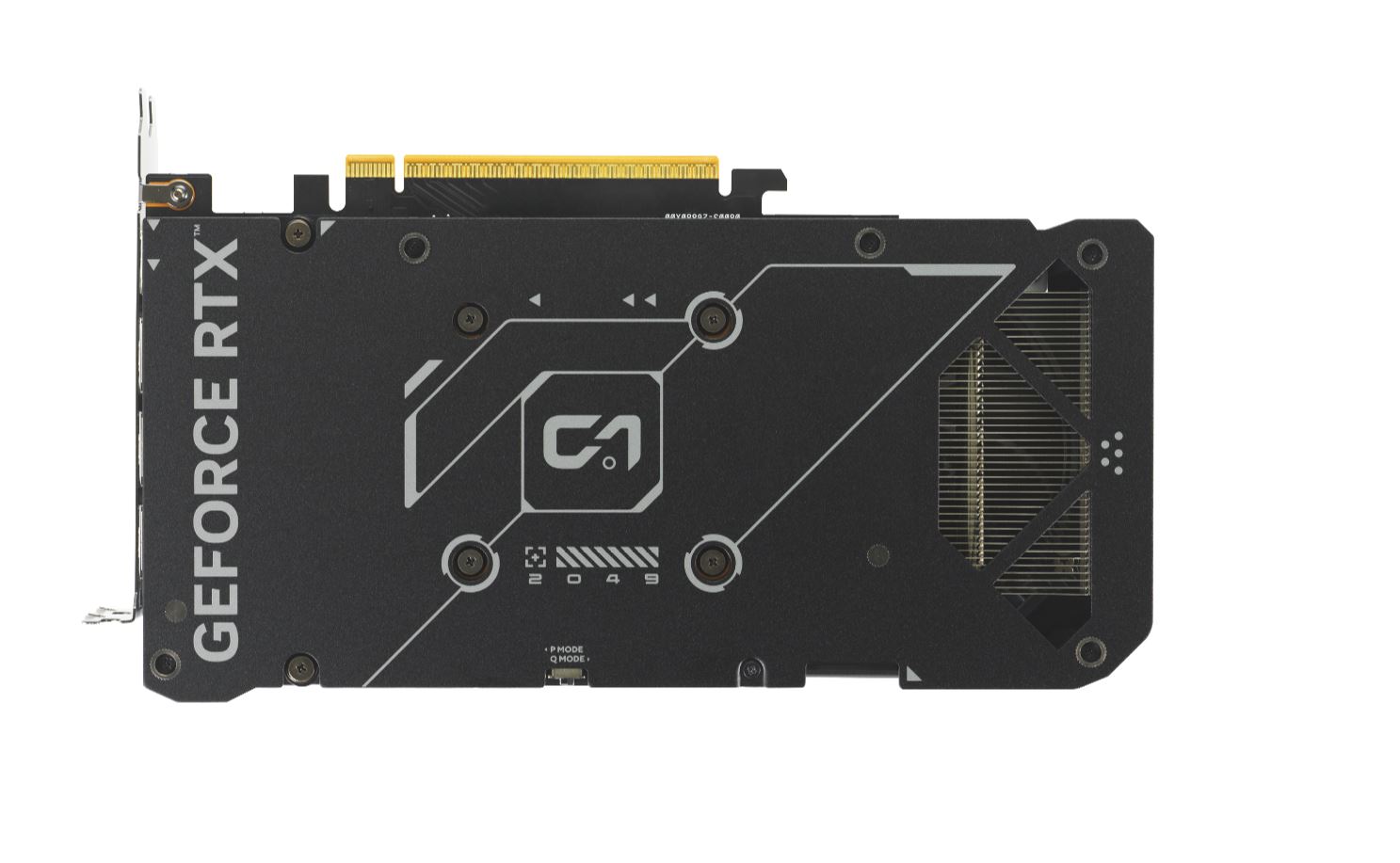

ASUS nVidia GeForce DUAL-RTX5060-O8G RTX5060 8GB GDDR7 OC Edition 2535MHz Boost Clock, RAM 28Gbps, 623 AI TOPs, Digital Max Resolution 7680 x 4320 | DUAL-RTX5060-O8G

ASUS nVidia GeForce DUAL-RTX5060-O8G OC mode: 2565MHz 8GB GDDR7 OpenGL®4.6

Model
DUAL-RTX5060-O8G
Graphic Engine
NVIDIA® GeForce RTX™ 5060
AI Performance
623 TOPs
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
8GB GDDR7
Engine Clock
OC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)
CUDA Core
3840
Memory Speed
28 Gbps
Memory Interface
128-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x Thank You Card
Software
ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver: please download all software from the support site.
Dimensions
228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches
Recommended PSU
550W
Power Connectors
1 x 8-pin
Slot
2.5 Slot
SFF Ready
Compatible
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage’ feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

Product Last Updated: 11/12/2025
