ASUS ExpertCentre D501 SFF PC Intel I7-14700 Win11 P B760 16GB 512GB SSD 330W 80+PLATINUM KB+MOUSE TPM 2.0 CARD R Intel WIFI6E BT 3yrs On Site Tower | D501SERES-714700020X

ASUS INTEL I7-14700 B760 8GB DDR5 U-DIMM *2 512G 2280 PCIE G4 SSD 330W 80+PLATINUM WD KB+MOUSE TPM 2.0 CARD READER WIFI6E 2*2 WW+BT-INTEL WIN11 PRO 3Y ON-SITE

Part No 90PF05M1-M01V60
Sales Model Name D501SERES-714700020X
EAN Code 4711636078986
UPC Code 199291078987
WEEE 5.997
BASE UNIT VSPF05M1-BU0010

Size 8.6L
Color Black
Form Factor Small form factor
Operating System Windows 11 Pro – ASUS recommends Windows 11 Pro for business
Office 1-month trial for new Microsoft 365 customers. Credit card required.
Processor ‘Intel® Core™ i7-14700 Processor 2.1GHz (33MB Cache, up to 5.3GHz, 20 cores, 28 Threads)
N/A’
Chipset Intel® B760 Chipset
DIMM Memory 8GB DDR5 U-DIMM *2
Memory Speed Memory speed is 5600MHz, but run at 4000~4400MHz.
Memory Max. 64GB
Integrated GPU Intel® UHD Graphics 770
Storage 512GB M.2 2280 NVMe™ PCIe® 4.0 SSD
Optical Drive Without optical drive
LAN Intel WGI219V 10/100/1000 Mbps, non-vPro
Audio High Definition 7.1 Channel Audio
Wireless Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.4 Wireless Card
Power Supply 330W power supply (80+ Platinum, peak 660W)

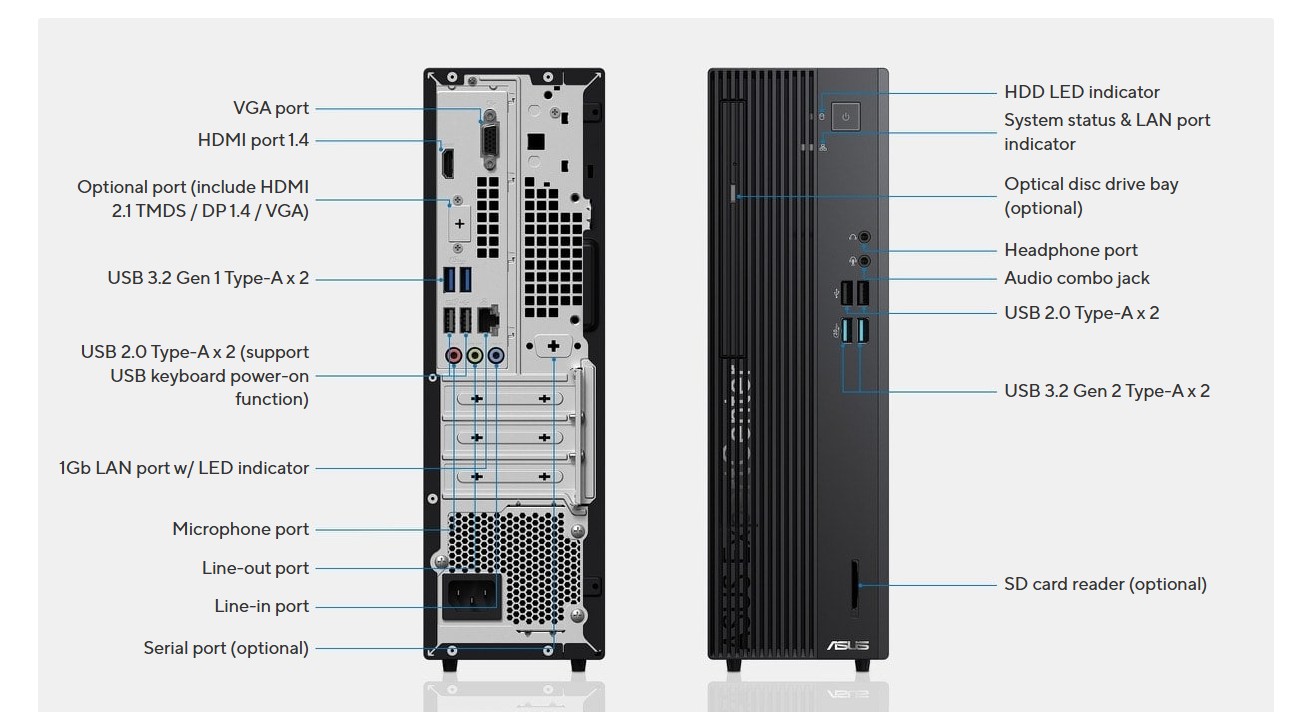

Rear I/O Port ‘1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x 7.1 channel audio (microphone, line-out, Line-in)
1x Kensington lock
1x Padlock loop
2x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x FLEX I/O port (DP1.4 HBR3)’
Front I/O Port ‘1x Headphone
1x 3.5 mm combo audio jack (Mic in or Headphone out)
2x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-A
1x 2 in 1 card reader SD / MMC’
Drive Bay ‘2.5” x 1
3.5” x 1’
Serial ATA 4 x SATA 6.0Gb/s ports
Expansion Slot(includes used) ‘1x PCIe® 4.0 x 16
2x PCIe® 3.0 x 1
1x M.2 2230 connector for storage
1x M.2 2280 connector for storage
1x M.2 connector for WiFi
2x DDR5 U-DIMM slot’
Keyboard Mouse ‘Wired keyboard (USB)
Wired optical mouse (USB)’
Accessory Intrusion cable (Intrusion Switch)
Dimension (WxDxH) 09.30 x 29.60 x 30.90 cm (3.66′ x 11.65′ x 12.17′)
Weight 06.00 kg (13.23 lbs)
My ASUS features ‘System diagnosis
Fan profile
AppDeals’
Built-in Apps ‘MyASUS
ASUS Business Manager’
Adobe Creative Cloud Hard Bundle One-Month Membership of Adobe Creative Cloud All Apps, Individual The redemption duration from September 15, 2021 to November 15, 2022.
Security ‘HDD User Password Protection and Security
Kensington Security Slot™(7x 3mm)
McAfee® 30 days free trial
Padlock loop
Trusted Platform Module (Firmware TPM)’
Antivirus N/A
TPM Trusted Platform Module (TPM) 2.0
Ecolabels Compliances ‘EPEAT Gold (selected SKU only)*
*All ExpertCenter models are EPEAT Silver certified. Some models outperform to achieve EPEAT Gold certification. Contact local sales representative for details.
EPEAT Silver
Energy star 8.0
REACH
RoHS’
Base Warranty 3Y OnSite Service
Recommended Warranty Package Part number//Extension and/or upgrade service from base warran ‘
*If you would like to know the details, please contact your sales teams.’
Sustainable Material_Front bezel 65% PCR recycled plastic front bezel

Product Last Updated: 11/12/2025
