APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime | SMX1500RMI2U

APC Smart-UPS X, Line Interactive, 1500VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1500VA/1200W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.
Run time for load 1200 W 5min 45s
Min-max: 120-1200 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 1200 W
Rated power in VA 1500 VA
Input Connection Type IEC 320 C14
Output connection type

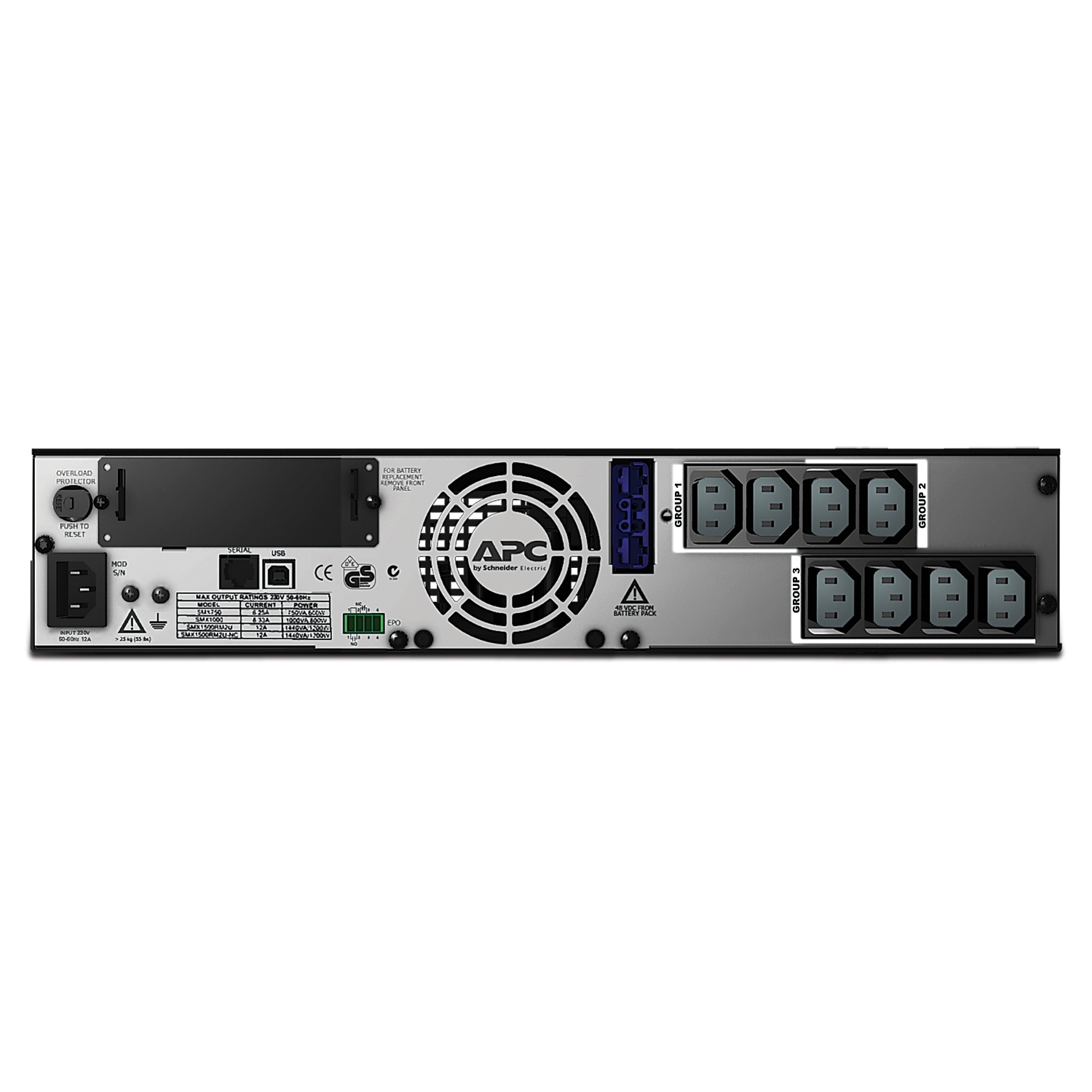

8 IEC 320 C13 2 IEC Jumpers
Number of rack unit 2U
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment, CD with software, Documentation CD Installation guide, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable
Acoustic level 40 dBA
Heat dissipation133 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…45 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %

Mounting mode- Rack mountable
Replacement Battery -APCRBC115
Compatible Batteries- SMX039-2
Compatible Mounting- AP9625, AR201, NBAC0302
Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340
Compatible Service bypass panels- SBP16KRMI4U, SBP3000RMI, SBP5000RMI2U, SBP6KRMI2U, SBP1500RMI
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC- AP9613, AP9620, AP9640, AP9641, AP9643,AP9810

Product Last Updated: 15/06/2025
