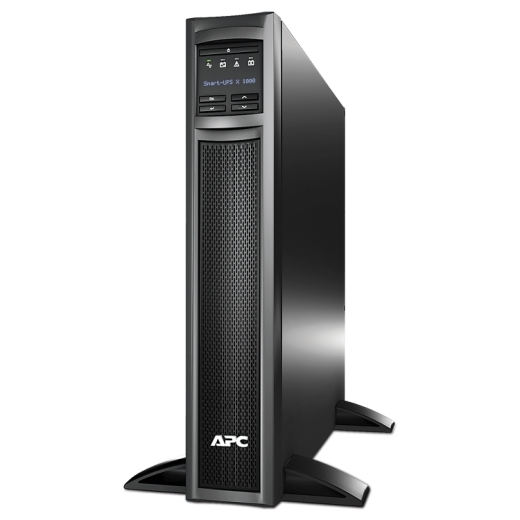

APC Smart-UPS X 1000VA/800W Line Interactive UPS, 2U RM/Tower, 230V/10A Input, 8x IEC C13 Outlets, Lead Acid Battery, SmartSlot | SMX1000I

APC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2U, 230V, 8x C13 IEC, SmartSlot, Extended runtime

This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 1000VA/800W premium and reliable line-interactive UPS provides pure sine wave and scalable runtime for critical applications. The 2U rack/tower convertible SMX has an optional Network Management Card for network-based monitoring and PowerChute Business Edition for unattended shutdown. The UPS comes with extendable batteries (up to 10) for more runtime during prolonged outages. It comes with IEC 320 C14 input, 8x IEC 320 C13 outlets, and 2x IEC jumper cables.
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 800 W
Rated power in VA 1000 VA
Input Connection Type IEC 320 C14
Output connection type 8 IEC 320 C13, 2 IEC Jumpers
Number of rack unit 2U
Cable length 1.83 m
Number of cables 1
Battery type Lead-acid battery
Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting brackets, Removable support feet, Smart UPS signalling RS-232 cable
Input voltage limits 151…302 V adjustable, 160…286 V
Network frequency 50/60 Hz +/- 3 Hz auto-sensing
Acoustic level 40 dBA
Heat dissipation 82 Btu/h
Operating altitude 0…10000 ft
Ambient air temperature for operation 0…45 °C
Ambient air temperature for storage -15…45 °C
Storage altitude 0.00…15240.00 m
Relative humidity 0…95 %
Storage Relative Humidity 0…95 %

Mounting mode- Rack mounted with kit
Replacement Battery -APCRBC116
Compatible Service bypass panels-SBP16KRMI4U, SBP3000RMI, SBP5000RMI2U, SBP6KRMI2U, SBP1500RMI
Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
Compatible Racks- ACF127, AP5717, AP5719, AP5808, AP5816
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC -AP9613, AP9620, AP9640, AP9641, AP9643
Compatible Mounting- NBAC0302

Product Last Updated: 12/09/2026
