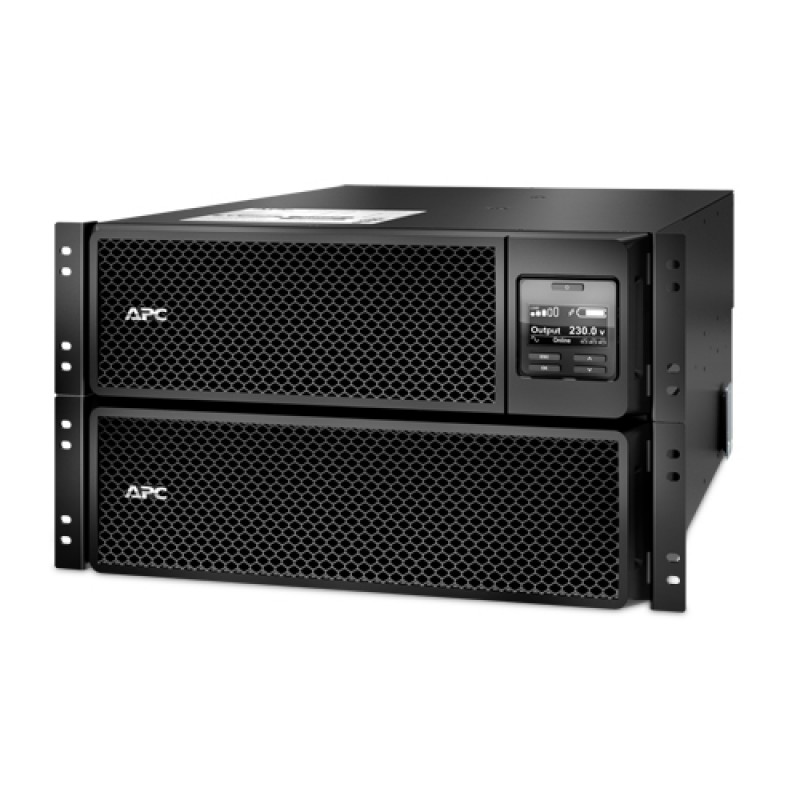

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit | SRT10KRMXLI

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 10000VA/10000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown.
Main Input Voltage 230 V 400 V 3 phases
Other Input Voltage 220 V 240 V 380 V 415 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output connection type- 6 IEC 60320 C13, 3 IEC Jumpers, 4 IEC 60320 C19
Output connector type Hard wire 3-wire (H N + E) 1
Number of rack unit 6U
Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Network frequency 40…70 Hz auto-sensing
Number of input connectors 1 hard wire 3-wire (1P + N + E) 1 hard wire 5-wire (3P + N + E)
Input voltage limits 100…275 V adjustable (half load) 173…476 V adjustable (half load)
Maximum configurable power in VA 10000 VA
Maximum configurable power in W 10000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Wave type Sine wave
Harmonic distortion Less than 2 %
Crest factor 3 : 1
Bypass type Internal bypass (automatic and manual)
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 55 dBA
Heat dissipation 1947 Btu/h

Replacement Battery -APCRBC140
Compatible Spare parts- ACF127, W870-8135
Compatible Wireless Communication Adapter-AP9834
