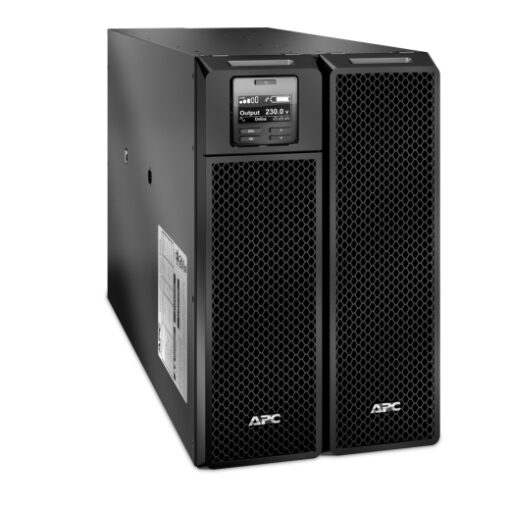

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A IEC outlets, Network Card+SmartSlot, Extended runtime, W/ custom PDU, W/ rail kit | SRT10RMXLIX806

APC Smart-UPS On-Line, 10kVA/10kW, Rackmount 6U, 230V/400V, 4x 32A IEC outlets, Network Card+SmartSlot, Extended runtime, W/ custom PDU, W/ rail

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 10000VA/10000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance.It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Main Input Voltage 230 V, 400 V 3 phases
Other Input Voltage 220 V, 240 V, 380 V, 415 V
Main Output Voltage 230 V
Other Output Voltage 220 V, 240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output connection type 4 IEC 60309 32 A
Output connector type Hard wire 3-wire (H N + E) 1
Number of rack unit 6U
Provided equipment- CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -15…45 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.0000000000…15240.0000000000 m
Acoustic level 55 dBA
Heat dissipation 1947 Btu/h
IP degree of protection IP20

Compatible PDU- AP8702R-WW, AP8702S-WW, AP8702S-WWX340, AP8702S-WWX590, AP8704R-WW
Compatible Service bypass panels-SBP5000RMI2U, SBP6KRMI2U, SBP16KP, SBP16KRMI4U
Compatible Racks- ACF127, AP4424, AP5717, AP5719, AP5808
Compatible NMC -AP9613, AP9810
Compatible Sensors- AP9335T, AP9335TH
Compatible Mounting- SRTRK2, NBAC0302

Product Last Updated: 28/04/2025
