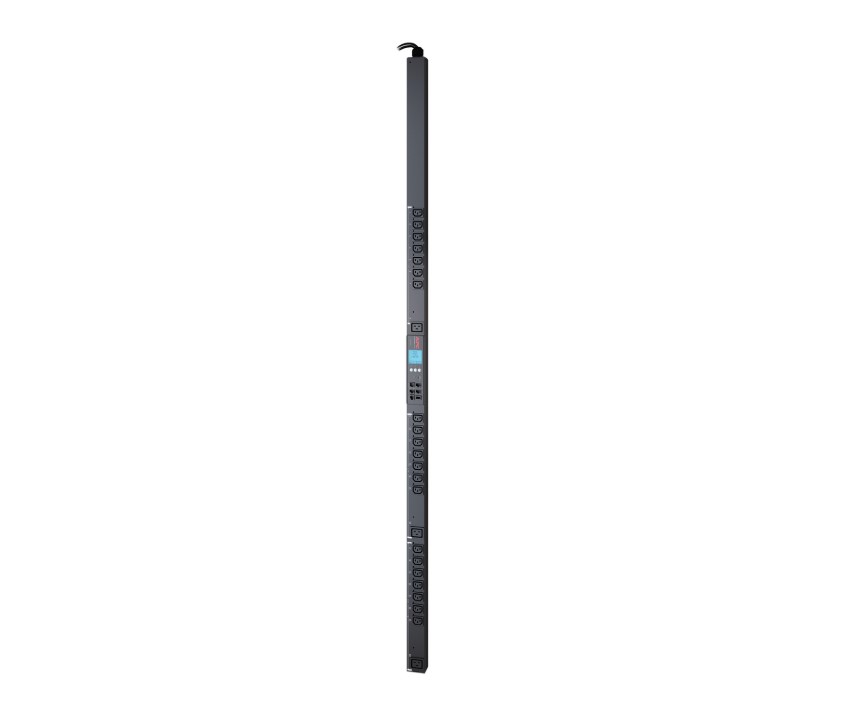

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 (3) C19 | AP8681

Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 11.0kW, 230V, (21) C13 (3) C19

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

Input Voltage: 400 V 3 phases
Height: 182.9 cm
Width: 5.6 cm
Output Voltage： 230 V
Depth： 5.1 cm
Net weight： 8.23 kg
Mounting location：Side
Mounting preference： No preference
Input Plug Type：
IEC 60309 16 A 3P + N + PE
IEC 60309 20 A 3P + N + PE

Mounting mode： Not rack-mountable
Rack units： 0U
Mounting position： Vertical
[In] rated current： 16 A
Max line current： 16 A
Input current limits： 16 A
Load capacity： 11000 VA
Network frequency： 50/60 Hz

Outlet type and quantity：
21 IEC 60320 C13
3 IEC 60320 C19

Product Last Updated: 11/12/2025
