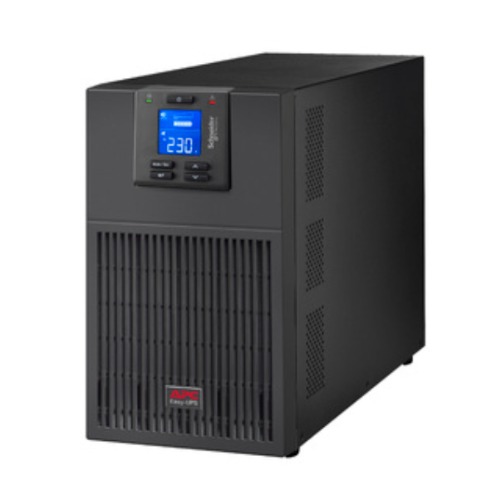

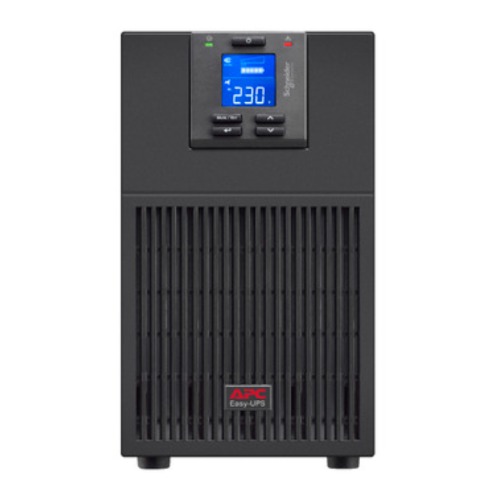

APC Easy UPS On-Line, 3kVA/2700W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD | SRV3KI-E

APC Easy UPS On-Line, 3kVA/2700W, Tower, 230V, 6x IEC C13 + 1x IEC C19 outlets, Intelligent Card Slot, LCD

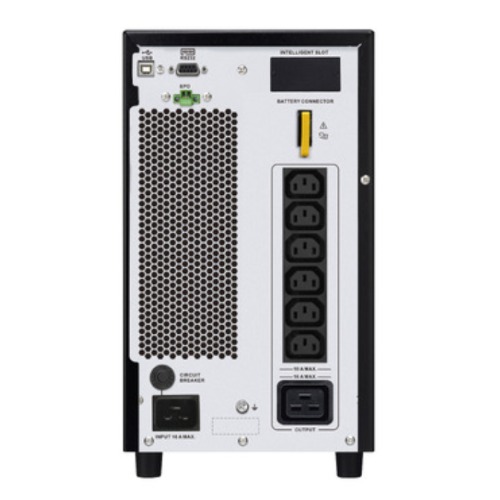

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 3kVA double-conversion on-line tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SRV comes with IEC 320 C20 input and 6x IEC 320 C13, 1x IEC 320 C19 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The SRV UPS is compatible with replacement battery cartridge APCRBCV205. The UPS and the built-in lead-acid battery has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.

Main Input Voltage 230 V AC 1 phase
Input voltage 220 V, 240 V
Input Connection Type IEC 60320 C20
Input voltage limits 110…285 V 40% load, 180…285 V full load
Network frequency 40…70 Hz auto sensing
Output voltage 230 V AC 1 phase
Output voltage 220 V, 240 V
Rated power in W 2700 W
Rated power in VA 3000 VA
Output connection type 6 IEC 60320 C13, 1 IEC 60320 C19
Bypass type
Internal bypass (automatic and manual)
Crest factor 3 : 1
Harmonic distortion 3 %
Maximum configurable power in VA 3000 VA
Maximum configurable power in W 2700 W
UPS type On-Line
Wave type Sine wave
Efficiency 88 % (full load)
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Additional information
Configurable for 220 : 230 or 240 nominal output voltage
Battery type
Lead-acid internal included
Control panel
Multifunction LCD status and control console
Free slots 1
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
UPS connectivity Serial port , USB port, Available expansion slot
Mounting preference No preference
Mounting mode Not rack-mountable
USB compatible Yes
Mounting position Vertical
Mounting mode Tower
Max runtime 3 min
