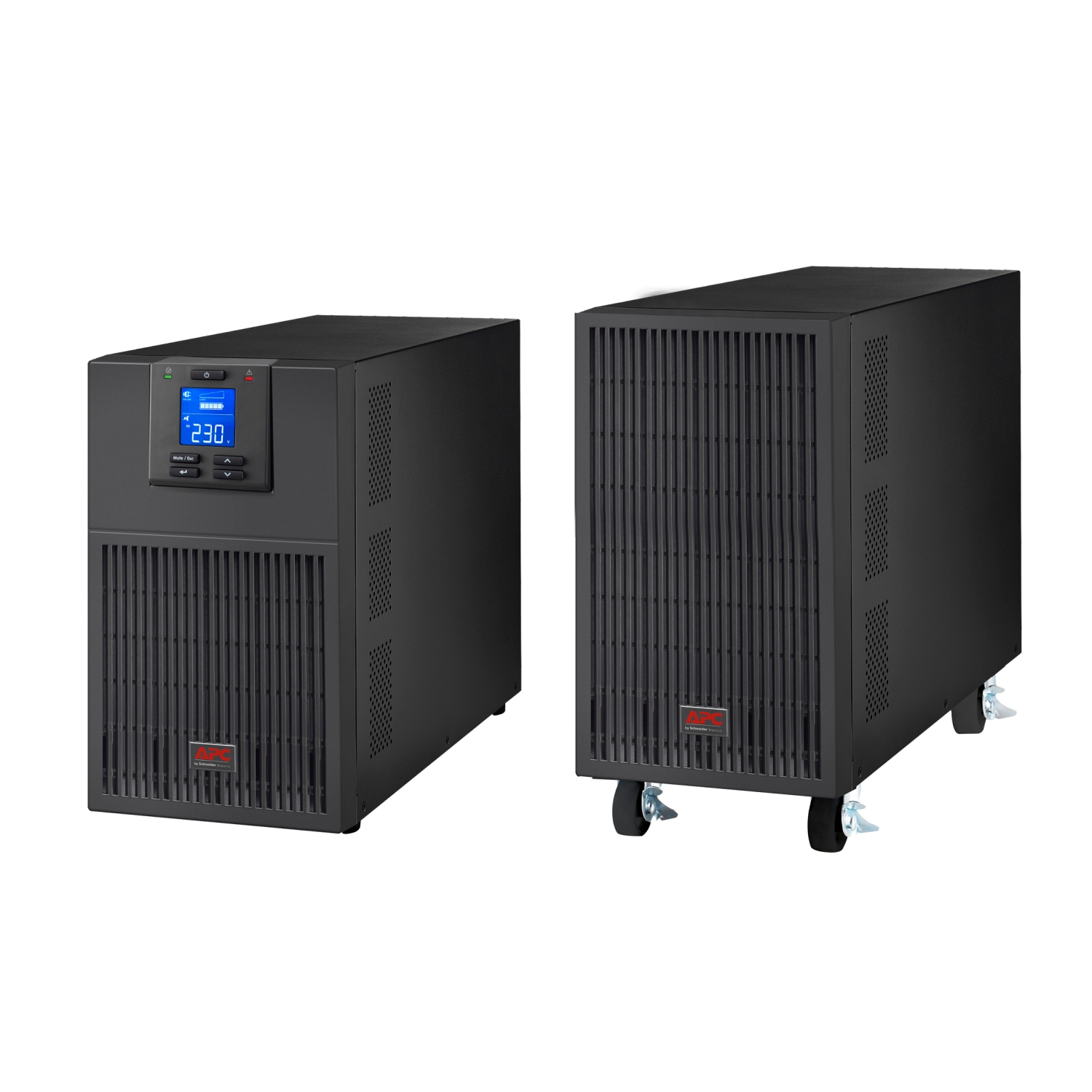

APC Easy UPS 10000VA/10000W Online UPS, Tower, 230V/HW Input, HW Outlet, Lead Acid Battery, W/ Extended Battery Pack | SRV10KIL

APC Easy UPS On-Line, 10kVA/10kW, Tower, 230V, Hard wire 3-wire(1P+N+E) outlet, Intelligent Card Slot, LCD, Extended Runtime

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and hard wire 3-wire(1P+ N+E) outlet.
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 10000 W
Rated power in VA 10000 VA
Output connector type Hard wire 3-wire (1P + N + E) 1
Provided equipment 1 USB cable, 1 RS-232 configuration cable, 1 external battery pack, 1 battery cable, user manual
(power cable not included)
Input voltage limits 110…300 V 60 % load 176…300 V full load
Number of input connectors 1 hard wire 3-wire (1P + N + E)
Network frequency 40…70 Hz auto sensing
Maximum configurable power in VA 10000 VA
Maximum configurable power in W 10000 W
Output frequency 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion 1 %
UPS type Double conversion online
Wave type Sine wave
Efficiency 94 % (full load)
Additional information Configurable for 220 : 230 or 240 nominal output voltage
Bypass type Internal bypass (automatic and manual)
Crest factor 3 : 1
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0…3000 m
Ambient air temperature for storage -15…60 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…15000 m
Acoustic level 58 dB
Heat dissipation 2128 Btu/h
IP degree of protection IP20

Mounting mode- Not rack mountable
Compatible NMC -AP9544, SRVSMB001, VGL9901I

Product Last Updated: 10/04/2026
