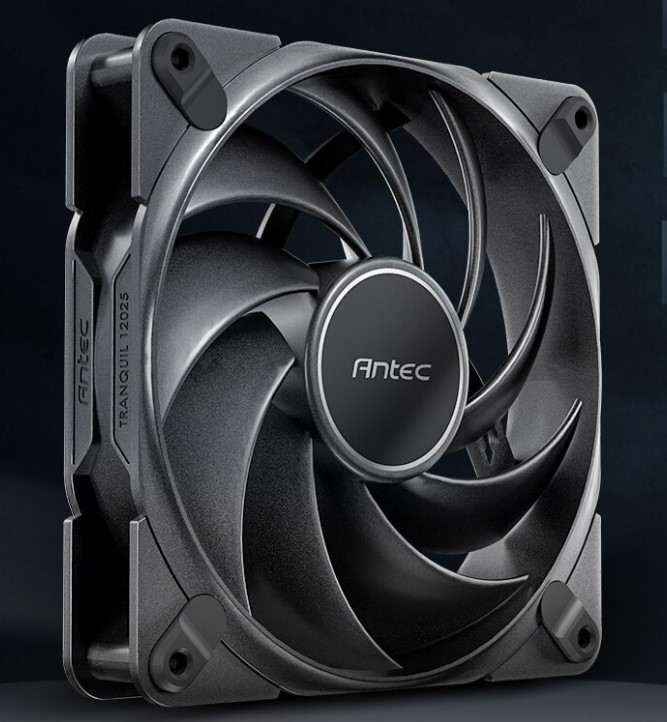

Antec Tranquil 120, PWM Fans, 2000RPM, 59.23CFM, 2.46mmH₂O, 4 Pin PWM Connector, 120mm x 25mm Performance case Fan, Single Pack(LS) | TQ120

The Tranquil 120 PWM FAN

TRANQUIL POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.

EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

Fluid Dynamic Bearing
Reduces friction between shaft and bearing for longer life and minimal noise.

VIBRATION-ABSORBING ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.

CABLE CONNECTOR
Durable Woven Wire
Covered with durable wovenwire to enhance the lifetime create unique aesthetics.
4-Pin PWM Daisy Chain Cable
Cable Length: 500 mm
PWM Extension Cable Included

Model Name Tranquil 120
Fan Type PWM Fan
Dimensions 120 x 120 x 25 mm
Bearing Type FDB
Fan Speed 400±100~2000±150 RPM
Airflow 11.05~59.23 CFM
Air Pressure 0.09~2.46 mmH₂O
Fan Noise Level 18.7~28.6 dB(A)
Lifespan 50,000 hours / 25℃
Connector 4-pin PWM
Rated Voltage DC 12 V
Operation Voltage DC 7-13.8 V
Rated Current 0.15 (MAX:0.20) A

Product Last Updated: 11/12/2025
