Alloy GCR2000SC.10 Gigabit Standalone, Rackmount Media Converter, Ethernet, Dual Purpose, Standalone or Installed | GCR2000SC.10

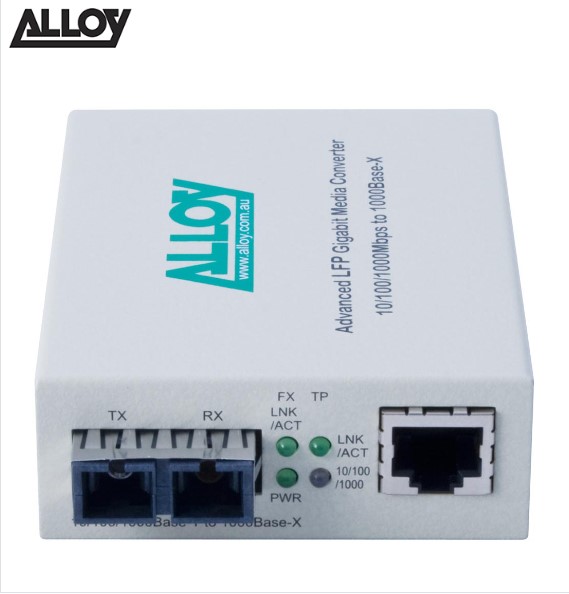

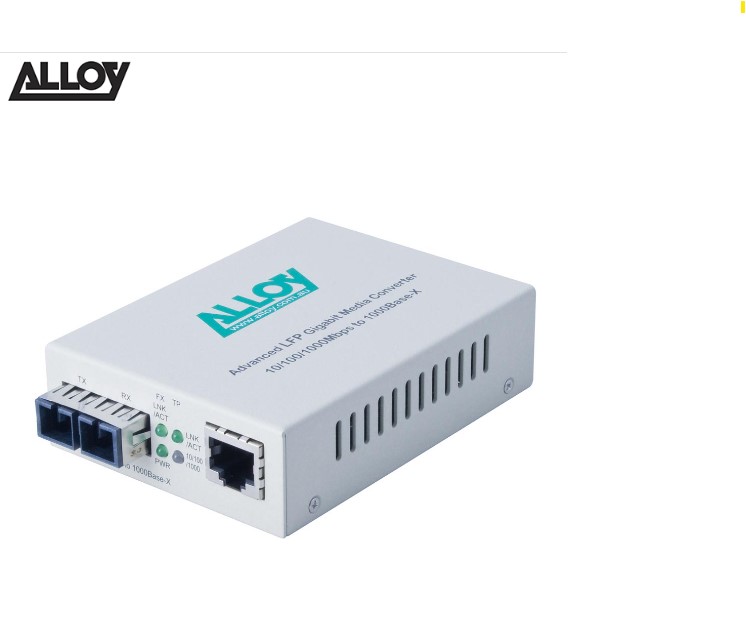

The GCR2000SC.10, a GCR2000 Series Gigabit Ethernet Media Converter, can be used ‘Standalone’ or installed in an Alloy DCR12 Series Media Converter Chassis, and has 1000Base-T and a 1000Base-LX singlemode SC ports. Fibre cable range is up to 10Km.

The GCR2000SC.10 is a dual purpose Gigabit Ethernet Media Converter. It can be used as a standalone discrete device, or can be installed as a Media Converter Module into any Alloy 12-slot Media Converter Chassis. Whichever mode the GCR2000SC.10 is used in, it is a flexible solution ideal for a wide variety of media conversion applications in Gigabit Ethernet network environments. With dual 1000Base-T auto-sensing 10/100/1000Mbps RJ-45 and 1000Base-LX SC terminated singlemode ports, the GCR2000SC.10 is an ideal solution for UTP/STP copper to Gigabit Ethernet singlemode fibre media conversion tasks. The devices IEEE 802.3ab compliant RJ-45 port supports Gigabit, Fast Ethernet and Ethernet UTP/STP links at up to a 100 metres range, and the 1000Base-LX port has a maximum fibre cable range of up to 10 kilometres.

Features
GCR2000SC.10 model – Gigabit copper to 1000Base-LX singlemode fibre media conversion
Dual Purpose GCR2000 Series – use ‘standalone’ or install in a DCR12 Series Media Converter Chassis
GCR2000 Series: Gigabit Ethernet copper to multimode, singlemode, WDM and SFP Media Conversion solutions
LC and SC fibre connectors supported on individual GCR2000 Series models
Up to 50 kilometres fibre range supported with fixed port MGCR2000 Series Converters
Up to 120 kilometres fibre range supported by MGCR2000SFP Converter
Easy ‘Slide-in, Hot Swap’ installation into DCR12 Media Converter Chassis systems
Supports Forced and Far-end Fault mode Link Fault Passthrough (LFP)

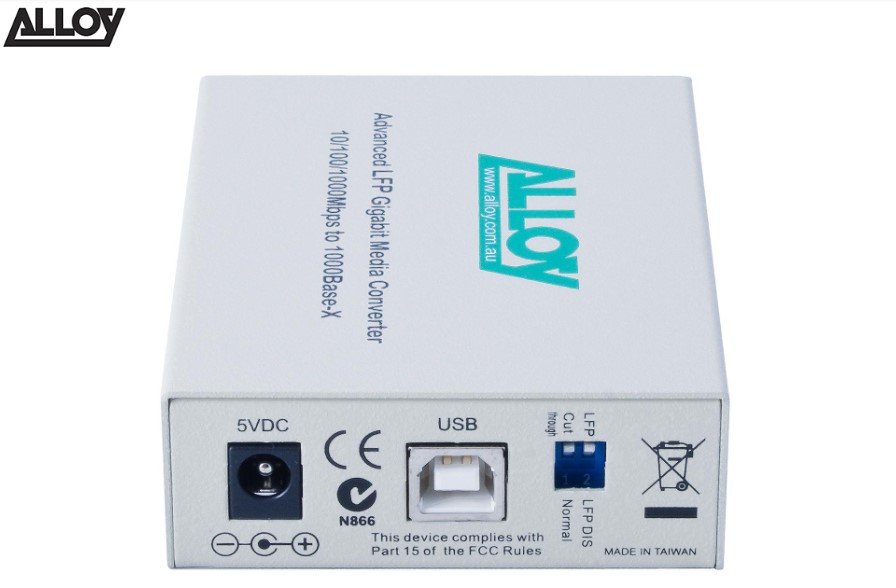

All GCR2000 models powered by external plugpack or via USB connection
Compact, rugged all-metal case

Product Last Updated: 28/04/2025
