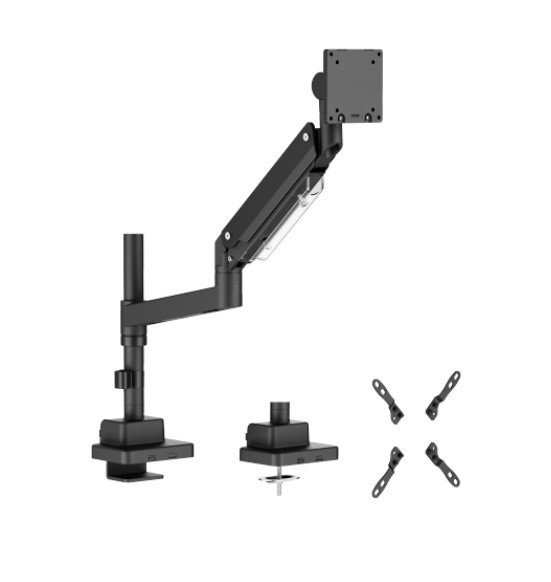

Brateck LDT80-C012P Super Heavy-Duty Pole-Mounted Gas Spring Monitor Arm, Matte Black, Fit Screen Size: 24′-57′ Up to 27 KG | LDT80-C012P

Brateck LDT80-C012P Super Heavy-Duty Pole-Mounted Gas Spring Monitor Arm, Matte Black(new)

FEATURES
●Detachable VESA Plate Design: enables easy installation
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●Include VESA Adapters: fit monitors with different VESA patterns

SPECIFICATIONS
Product Category: Gas Spring Monitor Arm
Rank: Premium
Material: Steel,Aluminum,Plastic
Surface Finish: Powder Coating
Color: Matte Black

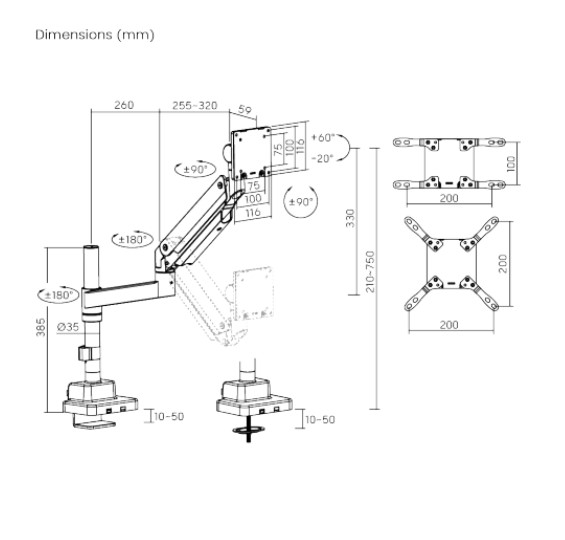

Dimensions: 156x630x825mm (6.1’x24.8’x32.5′)
Fit Screen Size: 24′-57′
Fit Curved Monitor: Yes
Screen Quantity: 1
Weight Capacity (per screen): 2~27kg (4.4lbs~59.4lbs)
Weight Capacity for Curved Screen (per screen): 2~22kg (4.4lbs~48.4lbs)
VESA Compatible: 75×75,100×100,200×100,200×200,100×200

Tilt Range: +60°~-20°
Swivel Range: +90°~-90°
Screen Rotation: +90°~-90°
Arm Full Extension: 580mm (22.8′)
Pole Height: 385mm (15.2′)
Installation: Clamp,Grommet
Suggested Desktop Thickness: Clamp:10~50mm Grommet:10~50mm (Clamp:0.39’~2′ Grommet:0.39’~2′)
Quick Release VESA Plate: Yes
Cable Management: Yes
Accessory Kit Package: Normal/Ziplock Polybag,Compartment Polybag

Product Last Updated: 23/11/2025
