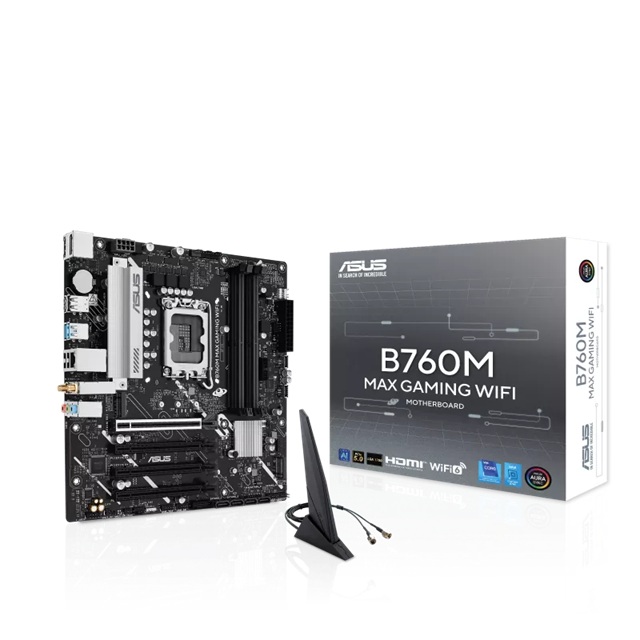

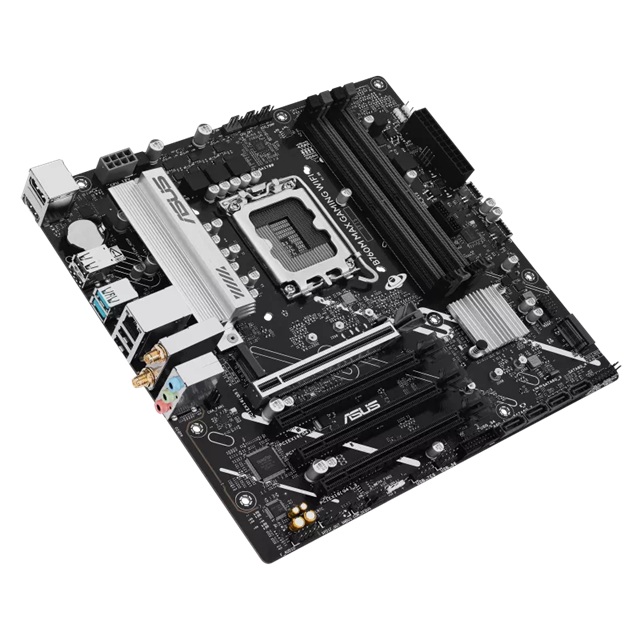

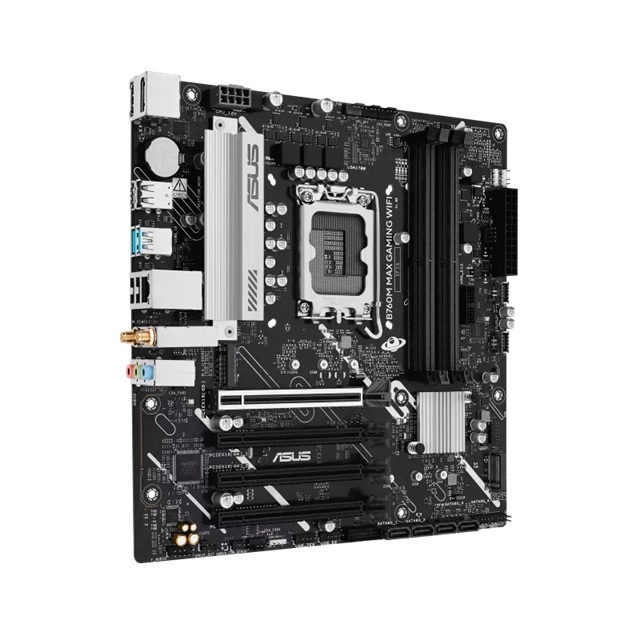

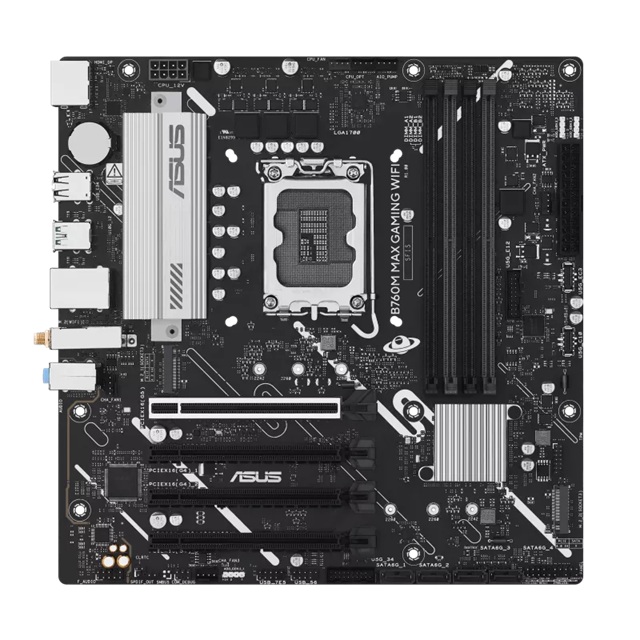

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard Up to 192GB DDR5 (4x Slots), 1 x PCIe 5.0, 3 x M.2, 4 x SATA, WiFi 6, HDMI, DP | B760M MAX GAMING WIFI

ASUS B760M MAX GAMING WIFI Intel LGA1700 mATX Motherboard Up to 192GB DDR5 (4x Slots), 1 x PCIe 5.0, 3 x M.2, 4 x SATA, WiFi 6, HDMI, DP

•Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
•Intel® LGA 1700 Socket: Ready for 14th ,13th and 12th Gen Intel® Core™ processors
•Ultrafast Connectivity: PCIe 5.0, DDR5, three M.2 slots, Realtek 1Gb Ethernet, Wi-Fi 6, rear USB 10Gbps, front USB 5Gbps Type-C®
•Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
•ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
•Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers , easily synced with Aura Sync-capable hardware
•CEC Tier II ready

SPECIFICATION
Model
B760M MAX GAMING WIFI

CPU
Intel® Socket LGA1700 for Intel® Core™14th 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
Intel® B760 Chipset

Memory
4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

Graphics
1 x DisplayPort**
1 x HDMITM port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots
Intel® Core™ Processors (14th 13th 12th Gen)
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (support x1 mode)
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Processors (14th 13th 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet
1 x Realtek 1Gb Ethernet

Wireless Bluetooth
Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3
*The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.

USB
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 5Gbps port (support USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Operating System
Windows® 11, Windows® 10 64-bit

Form Factor
mATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
