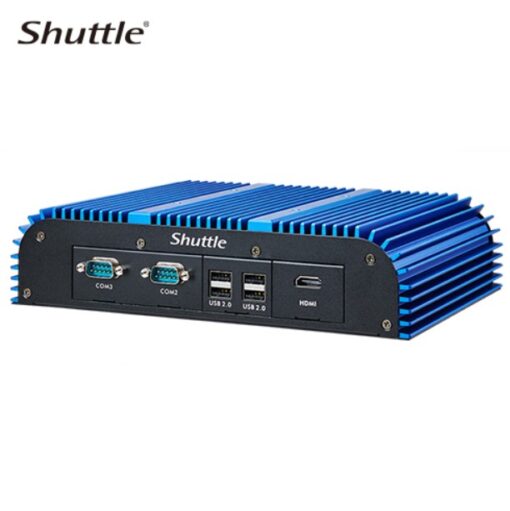

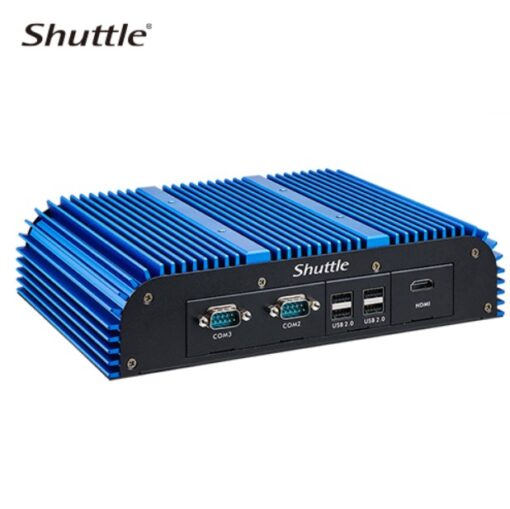

Shuttle BPCAL02 Box PC, Intel i5-1245UE, 2 x Intel® 2.5G LAN, 90W External Adapter, HDMI, VESA Mount

Shuttle’s BPCAL02 and BPCAL03 are intelligent embedded PCs, with Intel® 12th Gen Alder Lake processors for optimized intelligent workloads. These computers support dual-channel DDR5-4800 memory, enhance caching, and ensure data security. Powered by i5/i7 processors and Intel® Iris Xe graphics, they accelerate a wide range of tasks, including edge AI inference, data analysis, process control, image recognition, and more. Their highly flexible I/O modular designs, along with various mounting options, also meet a wide range of customized requirements in industrial IoT environments. Additionally, the BPCAL03 is capable of operating in a wide temperature range (-20°C to +60°C).
Memory 2 x 262 pin SO-DIMM up to 64GB
Dual Channel DDR5 4800 MHz
BIOS AMI UEFI 64 Mbit
Display Interface 2 x HDMI 2.0b: 4096 x 2160@60Hz
Display output max: 4 independent or clone
Audio Codec Realtek ALC888s-VD 2-channel
Ethernet 2 x Intel® 2.5G LAN
WLAN Intel WiFI Module (802.11 a/b/g/n/ac) BT 5.0 (Option), Realtek RTL8821CE 802.11a/b/g/n/ac + Bluetooth 4.2 WLAN card M.2 2230 E key (Option), External antenna (Dipole) x2 (Option)
LAN 2 x RJ-45 (10/100/1000Mbps/2.5GbE)
Serial Ports 1 x RS-232 (DB-9), 2 x RS-232/422/485 (DB-9) (RS232 with power supply :ring in/ 5V (standard) 12V (with specific optional board)
USB 4 x USB3.2 Gen 2 (Type A), 4 x USB2.0
Type 1. 19V (without wide range board), 2. With wide range board, MB support 9-36V DC-in
Adapter BPCAL02: 19V/4.74A 90W external adapter,
OS Support Windows 11 Embedded 64bit, Linux 64bit
Operating Temperature BPCAL02: 0 ~ 40°C
Storage Temperature -20°C ~ 80°C
Relative Humidity 20% – 80% RH (non-condensing)
EMC CE, FCC, VCCI, BSMI, RCM
Safety cTUVus, CB, CEC, BSMI

Product Last Updated: 28/04/2025
