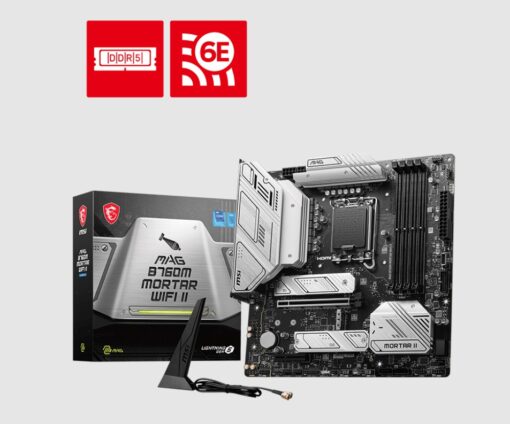

MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E | MAG B760M MORTAR WIFI II

MSI PRO B760M MORTAR WIFI II mATX Motherboard, 4x DDR5~256GB, 1x PCI-E x 16, 1x PCI-E x 4, 3x M.2, 4x SATA, 8x USB 2.0, Wi-Fi 6E

Specifications:

CHIPSET INTEL B760

CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700

MEMORY 4x DDR5, Maximum Memory Capacity 192GB
Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

ONBOARD GRAPHICS
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

EXPANSION SLOT
1x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

STORAGE
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)

INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x

WIRELESS LAN BLUETOOTH Intel® Wi-Fi 6E

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB DIMENSION mATX 243.84mmx243.84mm

Product Last Updated: 28/04/2025
