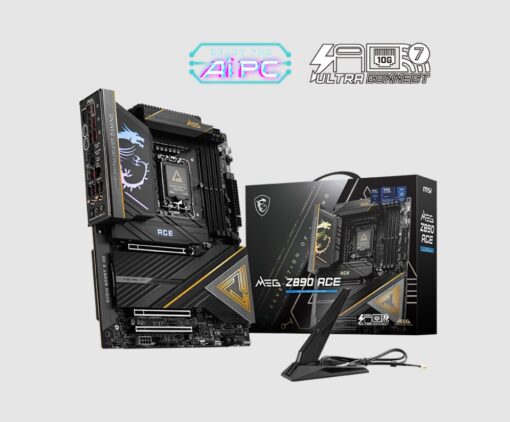

MSI MEG Z890 ACE INTEL Z890 Motherboard, 4x DDR5 256GB, 3x PCI-E x 16, 5x M.2, 4x SATA 6G, 11x USB 3, 4x USB-C

MSI MEG Z890 ACE INTEL Z890 Motherboard, 4x DDR5 256GB, 3x PCI-E x 16, 5x M.2, 4x SATA 6G, 11x USB 3, 4x USB-C

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851

Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

Onboard Graphics
1x HDMI™
Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*

Slot
3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4
• PCI_E2 support manual BIOS adjustment to X4+X4

Storage
5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
4x SATA 6G

USB
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
11x USB 10Gbps Type A (Rear)
2x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN 1x Marvell® AQC113CS 10Gbps LAN

Product Last Updated: 14/04/2025
