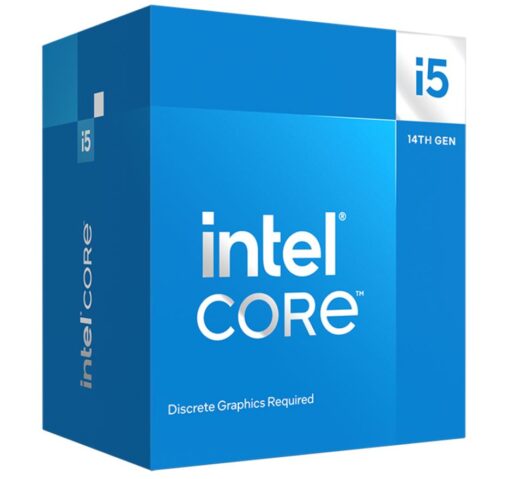

Intel i5 14400F CPU 3.5GHz (4.7GHz Turbo) 14th Gen LGA1700 10-Cores 16-Threads 29.5MB 65W Graphics Card Required Retail Raptor Lake with Fan | BX8071514400F

Intel i5 14400F CPU 3.5GHz (4.7GHz Turbo) 14th Gen LGA1700 10-Cores 16-Threads 29.5MB 65W Graphics Card Required Retail Raptor Lake with Fan

Essentials
Product Collection Intel® Core™ i5 Processors (14th gen)
Code Name Products formerly Raptor Lake

CPU Specifications
Total Cores 10
# of Performance-cores 6
# of Efficient-cores 4
Total Threads 16
Max Turbo Frequency 4.7 GHz
Performance-core Max Turbo Frequency 4.7 GHz
Efficient-core Max Turbo Frequency 3.5 GHz
Performance-core Base Frequency 2.5 GHz
Efficient-core Base Frequency 1.8 GHz
Cache 20 MB Intel® Smart Cache
Total L2 Cache 9.5 MB
Processor Base Power 65 W
Maximum Turbo Power 148 W

Memory Specifications
Max Memory Size (dependent on memory type) 192 GB
Memory Types Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s
Max # of Memory Channels 2
Max Memory Bandwidth 76.8 GB/s

Expansion Options
Direct Media Interface (DMI) Revision 4
Max # of DMI Lanes 8
Scalability 1S Only
PCI Express Revision 5.0 and 4.0
PCI Express Configurations ‡ Up to 1×16+4 | 2×8+4
Max # of PCI Express Lanes 20

Package Specifications
Sockets Supported FCLGA1700
Max CPU Configuration 1
Thermal Solution Specification PCG 2020C
TJUNCTION 100°C
Package Size 45.0 mm x 37.5 mm

Product Last Updated: 28/04/2025
