Gigabyte B760I AORUS PRO 1.1 Intel LGA 1700 m-ITX Motherboard, 2x DDR5 ~96GB, 1x PCI-E x16, 2x M.2, 4x SATA, 5x USB 3.2, 2x USB 2.0, 1x Type-C

Gigabyte B760I AORUS PRO 1.1 Intel LGA 1700 m-ITX Motherboard, 2x DDR5 ~96GB, 1x PCI-E x16, 2x M.2, 4x SATA, 5x USB 3.2, 2x USB 2.0, 1x Type-C

Specification:
CPU
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU

Chipset
Intel® B760 Express Chipset

Memory
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

Expansion Slots
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Storage Interface
21x M.2 connector
2 x SATA 6Gb/s connectors

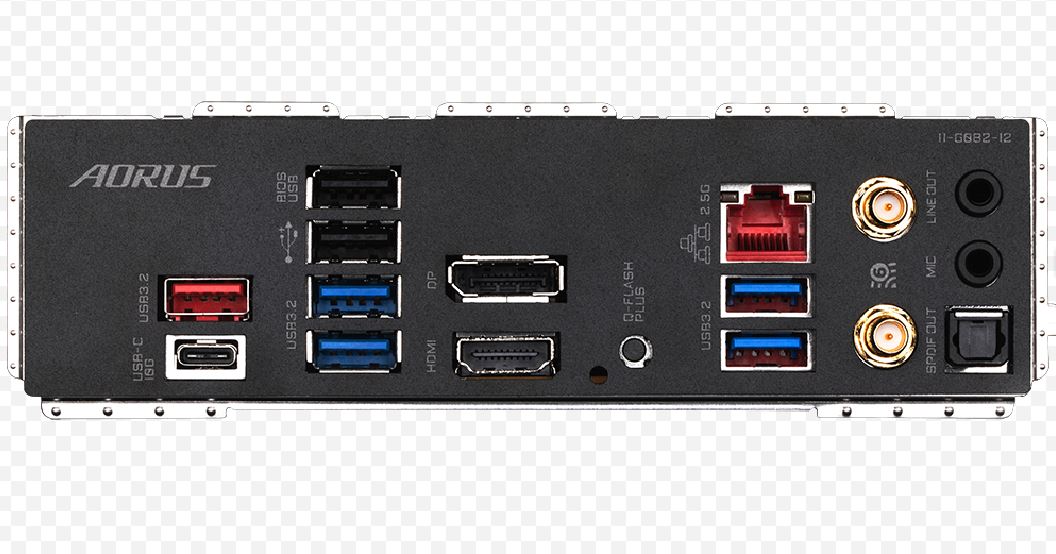

Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x DisplayPort
1 x HDMI port
1 x Q-Flash Plus button
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor Mini-ITX Form Factor; 17.0cm x 17.0cm

Product Last Updated: 14/04/2025
