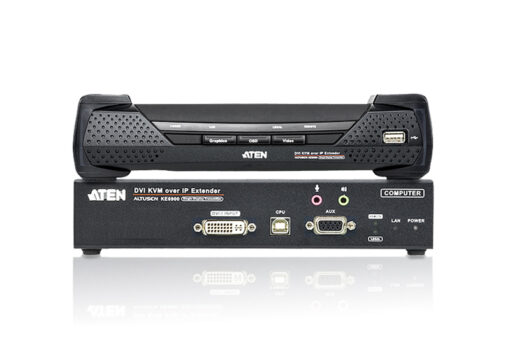

Aten DVI Single Display KVM over IP Transmitter with SFP Fibre Optic network Connection | KE6900AT-AX-U.

Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers (Rx)
Remotely access computers on your KVM installation via intranet
Dual console operation – control your system from both the transmitter and receiver USB keyboard, monitor, and mouse consoles
RS-232 serial ports – allows you to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners
Superior video quality – up to 1920 x 1200 @ 60 Hz; 24-bit color depth
Supports standard VGA resolutions from 640×480 to 1920×1200 at 60Hz
OSD (On Screen Display) on the Receiver configures both units
Remote login security
DVI digital and analog monitor support
Built-in 8KV/15KV ESD protection and 2KV surge protection
Supports stereo speakers and stereo microphone
Auto-MDIX – automatically detects cable type
Supports widescreen formats
Support High-Quality Video streaming
Virtual Media Support
Hot pluggable
Rack Mountable
Upgradeable firmware
An industrial-grade power adapter included – supports operating temperature of 0°C – 50°C to ensure durability and adaptability under harsh environmental conditions
Recommended Network Switches:
Below are the network switches that have passed ATEN’s stress tests using the KE Series extenders. Our tests streamed content over a network with a resolution of 1920 x 1200 @60Hz (KE69 Series) and 3840 x 2160 @30Hz (KE89 Series), 24bit color depth at 60 frames per second.
• Cisco Catalyst 2960X / Catalyst 2960XR / Catalyst 3750
• HP Procurve 2920
• H3C S5120
• Huawei S5700
• DLink DGS-1510
