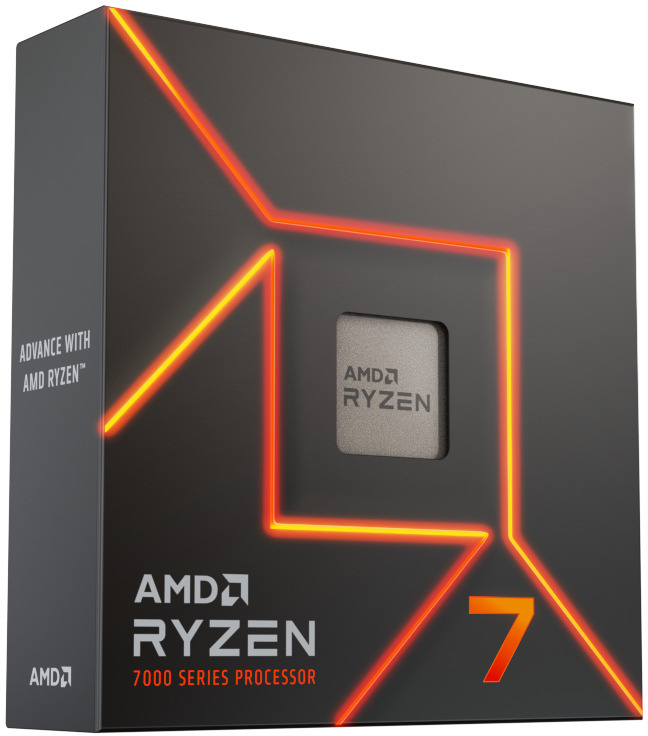

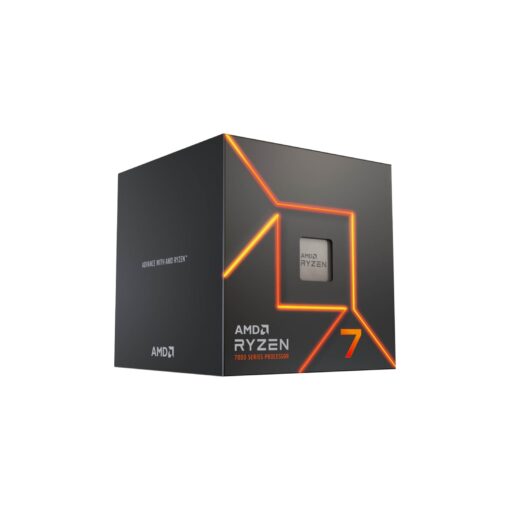

AMD Ryzen 7 7700 8 Cores / 16 Threads, 65 watts, Max Freq 5.3Ghz, 40MB Cache, Wraith Prism Cooler Radeon Graphics

AMD Ryzen 7 7700 8 Cores / 16 Threads, 65 watts, Max Freq 5.3Ghz, 40MB Cache, Wraith Prism Cooler Radeon Graphics

General Specifications

Platform Desktop

Market Segment Enthusiast Desktop

Product Family AMD Ryzen™ Processors

Product Line AMD Ryzen™ 7 Processors

AMD PRO Technologies No

Consumer Use Yes

Regional Availability Global,

Former Codename ‘Raphael AM5’

Architecture ‘Zen 4’

# of CPU Cores 8

Multithreading (SMT) Yes

# of Threads 16

Max. Boost Clock Up to 5.3GHz

Base Clock 3.8GHz

L1 Cache 512KB

L2 Cache 8MB

L3 Cache 32MB

Default TDP 65W

Processor Technology for CPU Cores TSMC 5nm FinFET

Processor Technology for I/O Die TSMC 6nm FinFET

CPU Compute Die (CCD) Size 71mm²

I/O Die (IOD) Size 122mm²

Package Die Count 1

Unlocked for Overclocking Yes

AMD EXPO™ Memory Overclocking Technology Yes

Precision Boost Overdrive
Yes
Curve Optimizer Voltage Offsets
Yes
AMD Ryzen™ Master Support
Yes
CPU Socket AM5

Supporting Chipsets
X670E
X670
B650E
B650

CPU Boost Technology Precision Boost 2

Instruction Set x86-64

Supported Extensions AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB) AMD Wraith Prism

Max. Operating Temperature (Tjmax) 95°C

Product Last Updated: 14/04/2025
