TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module, Transmit data up to 30m* at 10 Gbps, Support DDM, Support TX Disable function, Metallic EnclosuRR

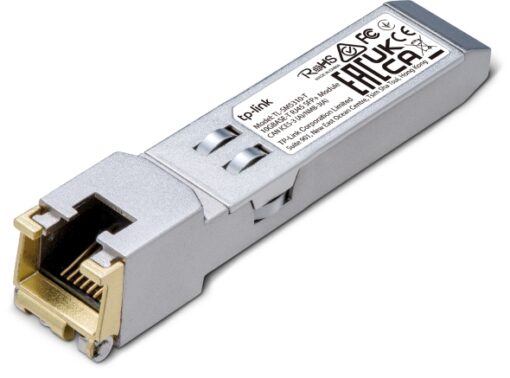

TP-Link TL-SM5310-T 10G BASE-T RJ45 SFP+ Module

• Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
• Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
• Support DDM (Temperature and Voltage)
• Hot-Pluggable SFP+ Footprint Features
• Support TX Disable function
• Commercial Product Operating Temperature Range: 0-70°C
• Fully Metallic Enclosure for Low EMI

PACKAGE CONTENTS
Package Contents • 10G BASE-T RJ45 SFP+ Module TL-SM5310-T
• Installation Guide

HARDWARE FEATURES
Hot Swappable Yes

TRANSCEIVER
Standards and Protocols IEEE Std 802.3, 802.3ab, 802.3bz, 82.3an
Power Supply 3.3V
Max. Cable Length 100BASE-TX: UTP cat .5 or above (max. 100m)
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6a or above (max. 30m)
Data Rate 10.3 Gbps
Port Type 1× 10G RJ45 Port
Safety Emission FCC, CE, RoHS
Environment Operating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–85 ℃ (-40–185 ℉)
