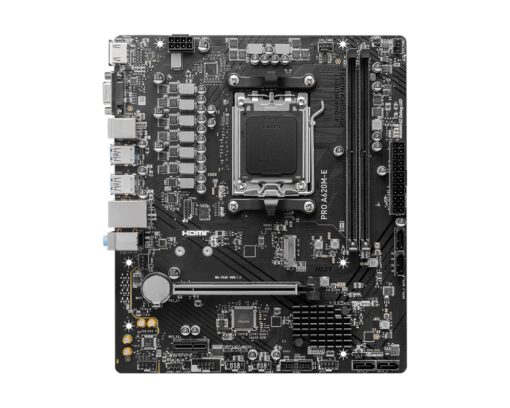

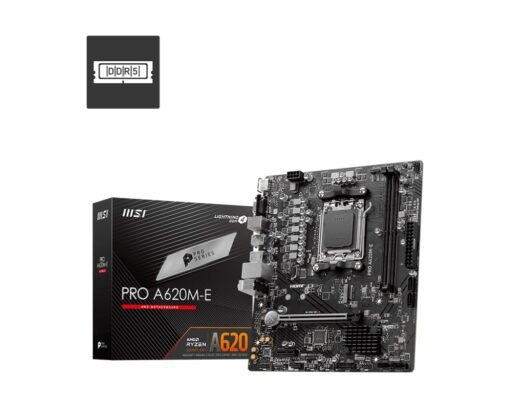

MSI PRO A620M-E AM5 mATX MB 2xDDR5 1xPCIE 16 1 PCI-E 1 1xM.2 4xSATA 4xUSB 3.2 2xUSB 2.0

MSI PRO A620M-E AM5 mATX MB 2xDDR5 1xPCIE 16 1 PCI-E 1 1xM.2 4xSATA 4xUSB 3.2 2xUSB 2.0

FEATURES:
Supports AMD Ryzen™ 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC)
Core Boost : With premium layout and digital power design to support more cores and provide better performance
Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

SPECIFICATION:
CHIPSET AMD A620
CPU SUPPORT Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
MEMORY 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6000+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO

ONBOARD GRAPHICS 1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® RTL8111H Gigabit LAN
AUDIO Realtek® ALC897 Codec
