DeepCool Vertical GPU Bracket For CG560/CK500/CK560/CH510, PCIe 4.0 Backward Compatible With PCIe3.0 MB, Silicone Cover Design

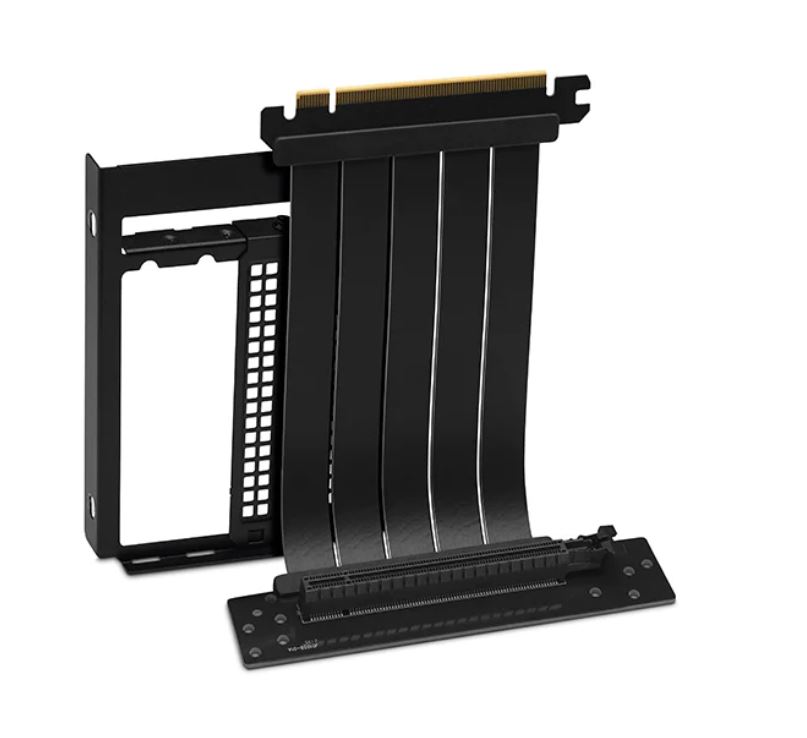

DeepCool Vertical GPU Bracket

Using a new PCIE4.0 wire, the transmission rate is the same as that of the graphics card directly inserted into the motherboard
Supports all high-end graphics cards currently on the market, and is backward compatible with PCIE3.0 motherboards
Silicone protective cover design, which effectively protects the wire from interference and transmits data more stably

Product name Vertical GPU Bracket
Bracket size（L*W*H) 121×18×143mm
Wire length 140mm
PCIE Compatibility PCIe Gen 4.0
Rated working voltage/current DC 12v/5A
Cable interface PCIE×16 hander to
PCIE×16 90° hander
Operating Temperature -20° to 100°

Product name Vertical GPU Bracket
Product Dimensions 121×18×143mm
Carton Dimensions 243×47×187(L×W×H)
Wire length 140mm
Net Weight 0.15kg
Net Weight 0.25kg
Materials PVC+PCB+LCP+GF
Wire Specifications PCIE Gen 4.0×16
Rated working voltage/current DC 12v/5A
Cable interface PCIE×16 hander to
PCIE×16 90°hander
Operating Temperature -20° to 100°
Chassis Support CG540/CG540 Limited
CG560/CG560 Limited
CK500/CK500 WH
CK560/CK560 WH
CH510/CH510 WH
Warranty 1 year

Product Last Updated: 01/07/2024
