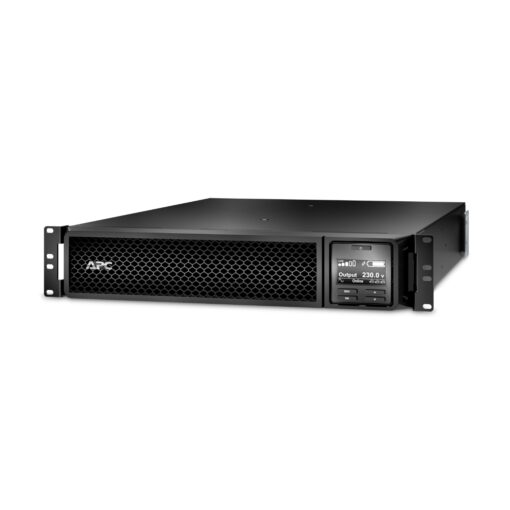

APC Smart-UPS 1000VA/1000W Online UPS, 2U RM, 230V/10A Input, 6x IEC C13 Outlets, Lead Acid Battery, SmartSlot, W/ Rail Kit

APC Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/ rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with IEC 320 C14, BS1363A British and Schuko CEE 7/EU1-16P inputs, and 6x IEC 320 C13 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms.
Run time for load 1000 W 8min 27s
Min-max: 100-1000 W
Max. Capacity Used 100 %
Main Input Voltage 230 V
Main Output Voltage 230 V
Other Output Voltage 220 V 240 V
Rated power in W 1000 W
Rated power in VA 1000 VA
Input Connection Type BS1363A British, IEC 60320 C14, Schuko CEE 7 / EU1-16P
Output connection type 6 IEC 60320 C13
Number of rack unit 2U
Cable length 1.83 m
Number of cables 1
Ambient air temperature for operation 0…40 °C
Relative humidity
0…95 % non-condensing
Operating altitude 0…10000 ft
Ambient air temperature for storage -20…50 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 50 dBA
Heat dissipation 317 Btu/h
IP degree of protection IP20

Mounting mode- Rack mounted with kit
Replacement Battery – APCRBC155
Compatible Service bypass panels- SBP16KRMI4U, SBP5000RMI2U, SBP6KRMI2U
Compatible PDU- AP6003A, AP6009A, AP6015A, AP6020A, AP6031A
Compatible Racks- ACF002, ACF127, ACF202BLK, ACF400, ACF402
Compatible Sensors- AP9335T, AP9335TH
Compatible NMC -AP9613,AP9620, AP9640, AP9641, AP9643, AP9810
Compatible Mounting- SRTRK3, SRTRK4

Product Last Updated: 14/04/2025
