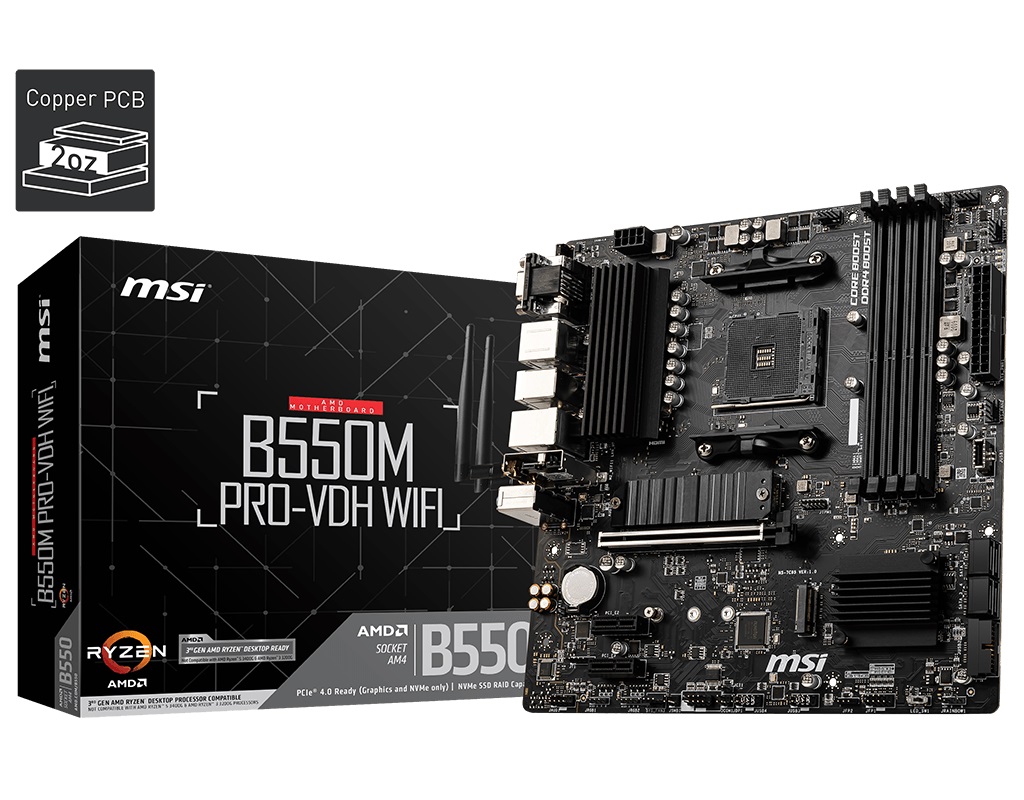

MSI B550M PRO-VDH WIFI AM4 MATX MB 4xDDR4 3xPCIE 2xM.2 HDMI VGA DP RAID LAN 4xSATAIII 5xUSB3.2 6xUSB2.0

MSI B550M PRO-VDH WIFI PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

SOCKET AMD Socket AM4
CPU (MAX SUPPORT) Support for 3rd Gen AMD® Ryzen™ processors and future AMD® Ryzen™ processors with BIOS update
CHIPSET AMD® B550 Chipset
DDR4 MEMORY 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz by JEDEC and A-XMP OC MODE
MEMORY CHANNEL Dual
DIMM SLOTS 4
MAX MEMORY (GB) 128
PCI-E X16 1
PCI-E GEN Gen4 / Gen3
PCI-E X1 2
SATAIII 4
M.2 SLOT 2
RAID 0/1/10
TPM (HEADER) 1
LAN 1x Realtek® RTL8111HN Gigabit LAN
USB 3.2 PORTS (FRONT) 1(Gen 1, Type C), 2(Gen 1, Type A)
USB 3.2 PORTS (REAR) 4(Gen 1, Type A)
USB 2.0 PORTS (FRONT) 4
USB 2.0 PORTS (REAR) 2
SERIAL PORTS(FRONT) 1
AUDIO PORTS (REAR) 3 HD audio connectors
DISPLAYPORT 1
VGA 1
HDMI 1
DIRECTX 12
FORM FACTOR MATX
OPERATING SYSTEM Support for Windows® 10 64-bit

Product Last Updated: 14/04/2025
