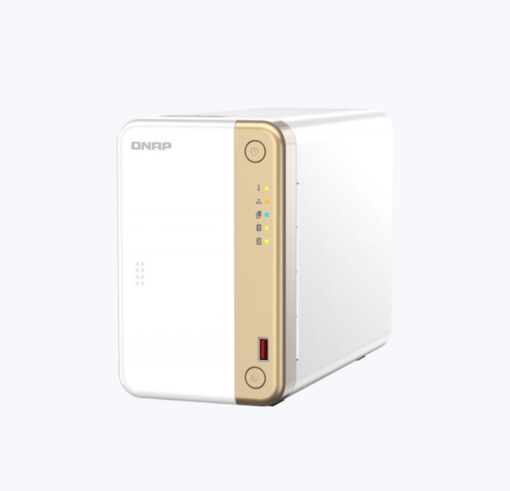

QNAP TS-262 2 Bay Multimedia NAS Intel Celeron N4505 Dual Core 2.9GHz 4GB 2.5Gbe 2x 3.5/2.5′ SATA 2x M.2 2280 Nvme Expansion

QNAP TS-262 2 Bay Multimedia NAS Intel Celeron N4505 Dual Core 2.9GHz 4GB 2.5Gbe 2x 3.5/2.5′ SATA 2x M.2 2280 Nvme Expansion

CPU Intel® Celeron® N4505 2-core/2-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics
Floating Point Unit Yes
Encryption Engine Yes (AES-NI)
Hardware-accelerated
Transcoding
Yes
System Memory 4 GB RAM
Maximum Memory 4 GB
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 2 x 3.5-inch SATA 6Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration
Support
Yes
2.5 Gigabit Ethernet Port
(2.5G/1G/100M)
1 (2.5G/1G/100M/10M)
5 Gigabit Ethernet Port
(5G/2.5G/1G/100M)
Optional via PCIe expansion card
10 Gigabit Ethernet Port Optional via PCIe expansion card
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot 1
Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps)
Port
2 x Type-A
IR Sensor Yes (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0 (up to 4096 x 2160 @ 60Hz)
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-2
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 168 × 105 × 226 mm
Weight (Net) 1.55 kg
Weight (Gross) 2.68 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 65W adapter, 100-240V
Power Consumption: HDD
Sleep Mode
8.198 W
Power Consumption:
Operating Mode, Typical
12.448 W
Fan 1 x 70mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of
Concurrent Connections
(CIFS) – with Max. Memory
1500

Product Last Updated: 14/04/2025
