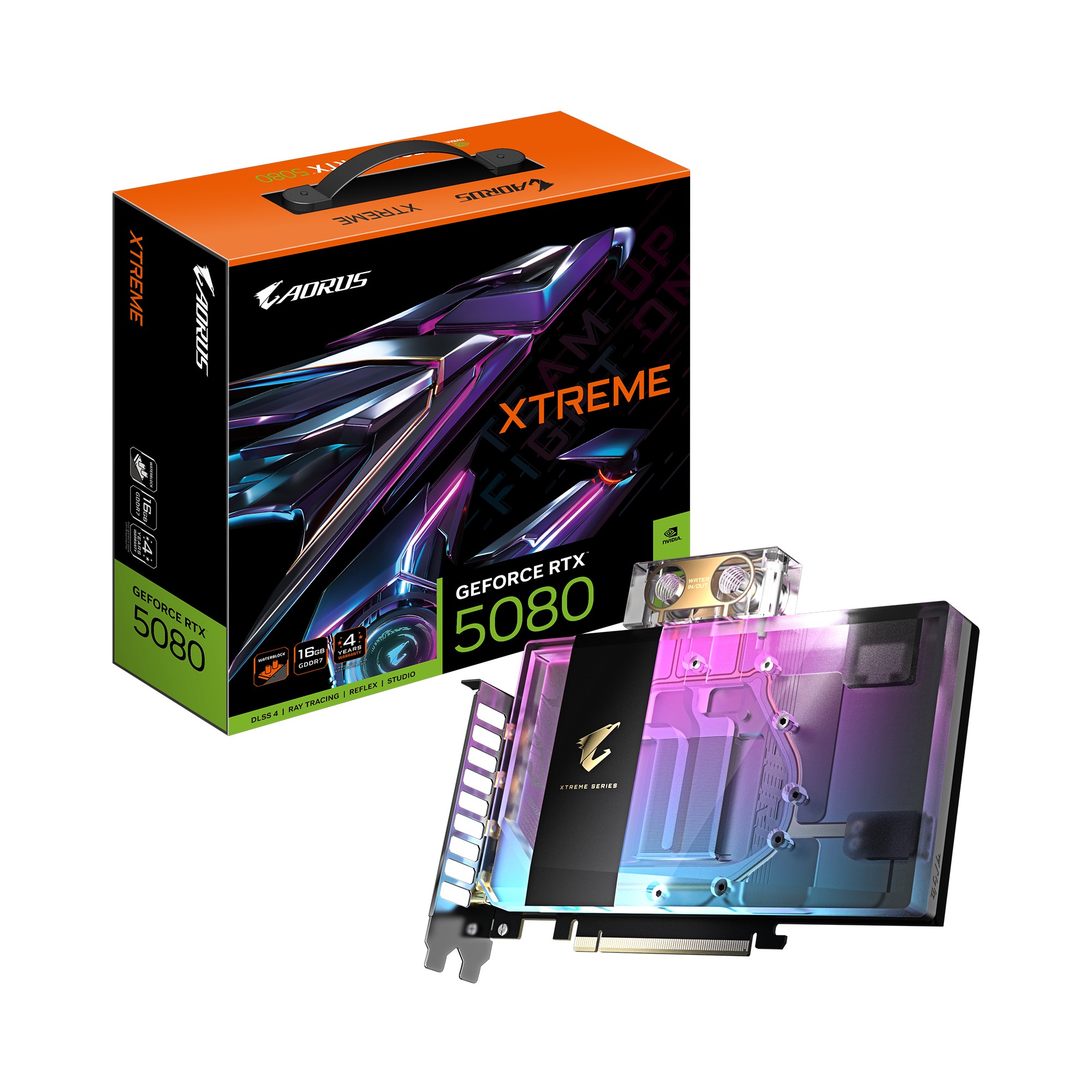

Gigabyte AORUS GeForce RTX™ 5080 XTREME WATERFORCE WB 16G, 2805 MHz, CUDA 10752, 30 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 850W, HDMI 2.1b x1 | GV-N5080AORUSX WB-16GD

Gigabyte AORUS GeForce RTX™ 5080 XTREME WATERFORCE WB 16G, 2805 MHz, CUDA 10752, 30 Gbps, GDDR7, 256 bit, PCI-E 5.0, PSU 850W, HDMI 2.1b x1

SPECIFICATION

Graphics Processing
GeForce RTX™ 5080

Core Clock
2805 MHz (Reference: 2617 MHz)

CUDA® Cores
10752

Memory Clock
30 Gbps

Memory Size
16GB

Memory Type
GDDR7

Memory Bus
256 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680 x 4320

Multi-view
4

Card size
L=208 W=156 H=29

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
OpenGL 4.6

Recommended PSU
850W

Power Connectors
16 pin*1

Output
DisplayPort 2.1b x3
HDMI 2.1b x1

Accessories
1. VGA manual
2. WATERFORCE water block installation guide
3. Warranty notice
4. 1x 12V-2×6 to 3x PCIe 8pin adapter
5. AORUS identity stickers
6. Thermal grease

Note
*Please use non-corrosive coolant

FEATURES
FEATURES
Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX™ 5080
Integrated with 16GB GDDR7 256bit memory interface
WATERFORCE Water Block cooling system
Patented leak detection
RGB Lighting
Protective metal back plate
4 Years Warranty (Online registration required)

NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors
Optimized for neural shaders

Fourth-Gen Ray Tracing Cores
Built for Mega Geometry

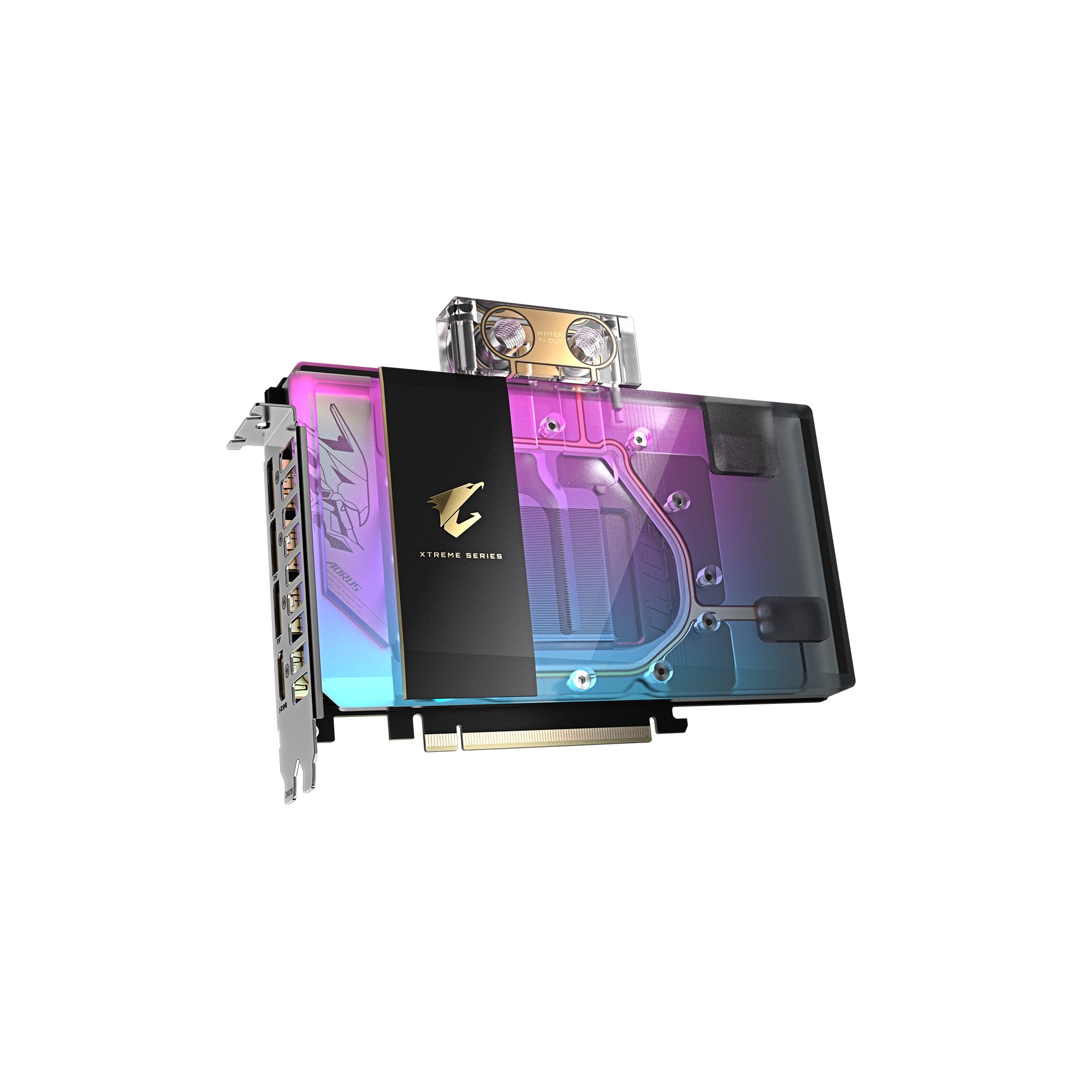

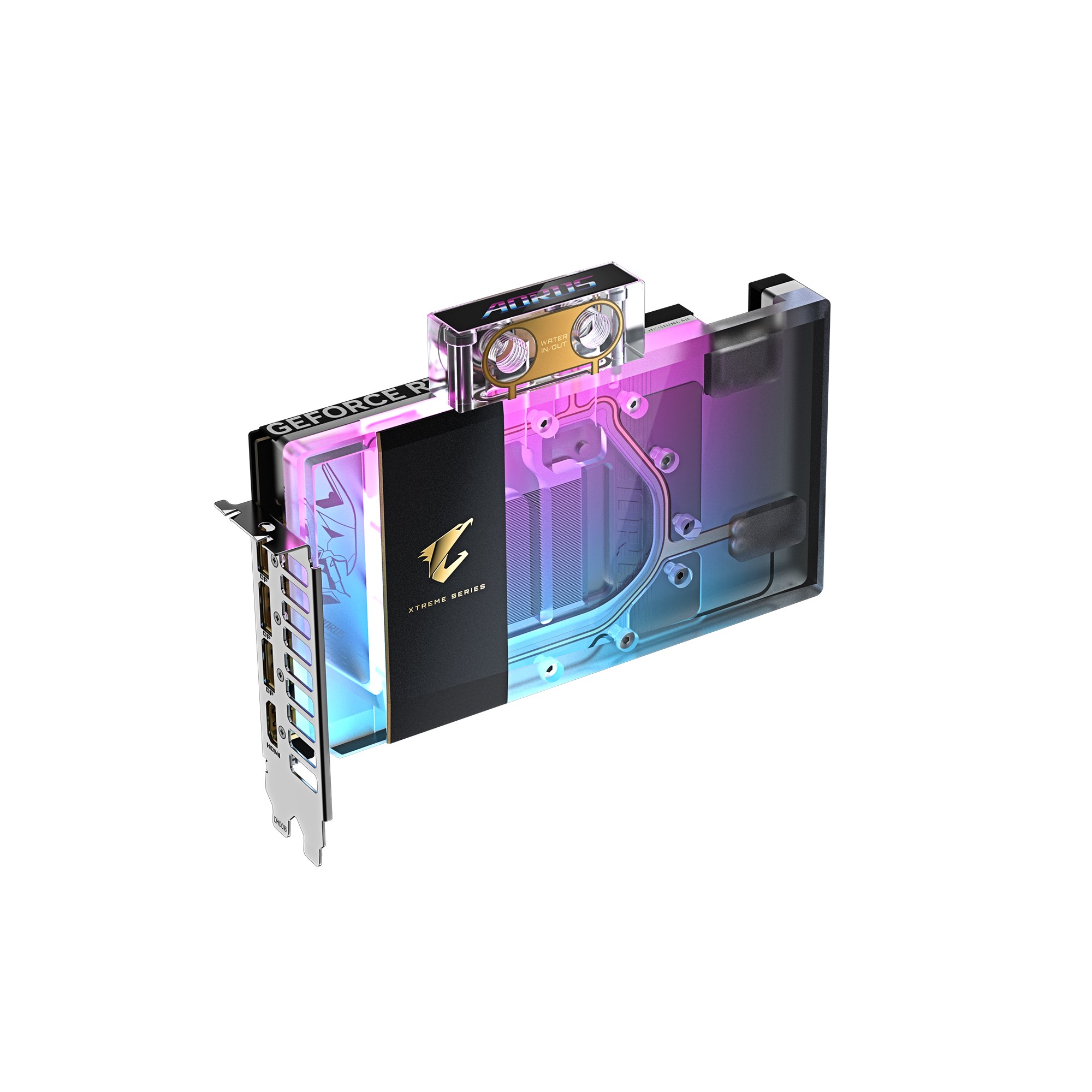

WATERFORCE
COOLING SYSTEM
Designed for DIY PC enthusiasts aiming to create unique custom loop builds and achieve the highest possible performance in silence. AORUS provides an all-round cooling solution as critical parts like GPU, VRAM and MOSFET are actively cooled to ensure system stability under high overclocks.

UNCOMPROMISING CRAFTSMANSHIP PERFORMANCE
Convergence symbolizes the gathering of flowing water. By significantly expanding the transparent areas, it highlights the aesthetics of an open design. The seamless integration of the water-cooling structure with the graphics card’s appearance embodies the XTREME series’ commitment to ultimate luxury and premium craftsmanship.

TRANSPARENCY
The use of a light-translucent iridescent metal plate design subtly reveals the internal components of the graphics card, elevating the fusion of visual aesthetics and technology to a new level.

AUREATENESS
Incorporating the gilded circuit seamlessly into the design enhances the graphics card’s overall elegance, making it the symbol of XTREME sophistication and luxury.

SUBTLETY
The ultimate design completely conceals the PCB, except for the power connector, making the entire graphics card more pure.

RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

EXCELLENCE IN ESSENTIAL

PATENTED LEAK DETECTION
The water block is built in with a leak detection circuit covering the entire waterblock, which promptly alerts users by flash warning light in case of any liquid leaks.

Product Description Last Updated: 23/09/2025
