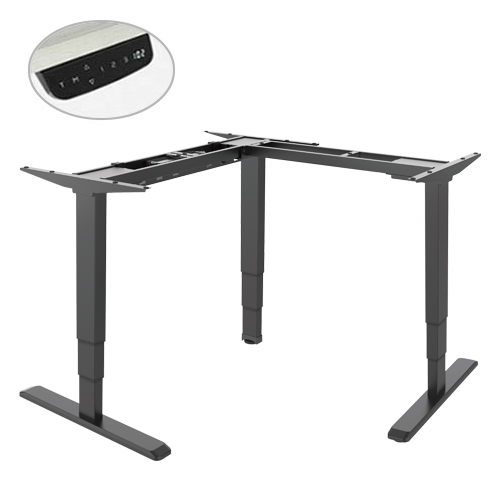

Brateck Triple Motor L-Shape Electric Sit-Stand Desk (Frame only) Three Stage Column 40X80、46X86、52X92mm (LS)

Brateck Triple Motor L-Shape Electric Sit-Stand Desk (Frame only)

FEATURES
●Motor(s) is(are) Thermal and Overload Protected: for safety and longevity
●3 Programmable Memory: presets save your desired height
●Programmable height range: customizes the minimum and maximum height settings to accommodate objects around you, such as under desk cabinets or storage units
●Easy-Assembly: advanced frame design reduces set-up time while providing long-term stability for confident daily use
●Digital LED Memory Controller: for customizable settings
●Sit/Stand Time Reminder: for regular movement
●Programmable Proprietary Gyro-Current Collision Avoidance System: improved sensing technology for better detection of soft and hard objects in the movement path
●Three Stage Standard Column: offers more adjustability

SPECIFICATIONS
Product Category: Electric Sit-Stand Desk
Rank: Premium
Material: Steel,Plastic

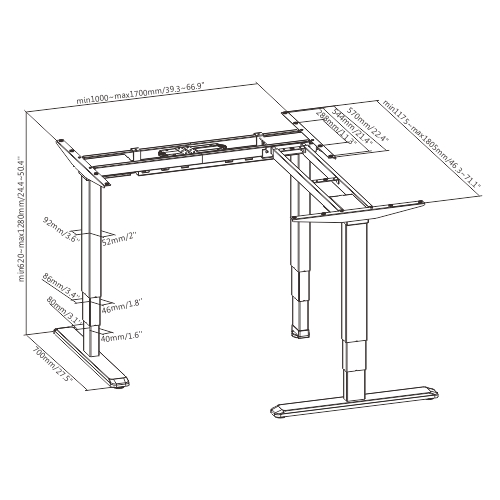

Dimensions: 1000~1700×1175~1805×620~1280mm (39.4’~66.9’x46.3’~71.1’x24.4’~50.4′)
Frame Orientation: L-Shaped(90°)
Tabletop Thickness: ≥25mm (≥0.98′)
Tabletop Size: （1200~2000） 90°（1200~2000）mm (（47.2’~78.7’） 3.5’°（47.2’~78.7’）)
Weight Capacity: 150kg (330lbs)
Width Range: 1000~1700、1175~1805mm (39.4’~66.9’、46.3’~71.1′)
Height Range: 620~1280mm (24.4’~50.4′)
Column Design: Reversed Column
Column Segments: Three Stage Column
Column Size: 40X80、46X86、52X92mm
Leg Quantity: Three Legs
Frame Color: Black (AkzoNobel Powder Coat),White (AkzoNobel Powder Coat),Grey (AkzoNobel Powder Coat)
Adjustable Feet Pad: Yes
Motor Quantity: 3
Power Input: 100~240V
Power Cord Length: 3m (9.8ft)
Max. Speed: 38mm/s
Controller Type: Touch Control Panel
Time Reminder: Yes
Suggested Operating Temperature: -5℃~40℃
IP Grade: IP20
Certification: CB AS/NZS Report for National Differences,CE,FCC,RCM,RoHS,UL
Accessory Kit Package: Normal/Ziplock Polybag

Recommended desk board: MABT-TP18075L-W

Product Last Updated: 14/04/2025
